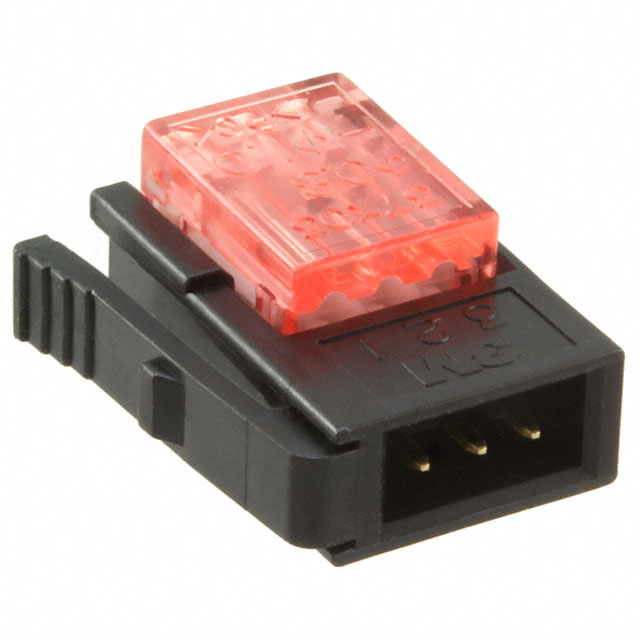

37103-3101-000 FL 100

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

37103-3101-000 FL 100

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37103-3101-000 FL 100

Cable Termination	IDC
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

37103 Series

Part	Pitch [x]	Pitch [x]	Wire Type	Features	Number of Rows	Color	Cable Termination	Fastening Type	Mounting Type	Contact Finish	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Type
3M (TC) 37103-B122-00E MB	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	24 AWG	26 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-B163-00E MB	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	24 AWG	26 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-4080-G00 FL	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin			8 çin	0.203 çm	Plug
3M (TC) 37103-A206-00E MB	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	20 AWG	24 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-2124-000 FL 500	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	20 AWG	22 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-2206-000 FL 500	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	20 AWG	22 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-3163-000 FL 500	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	24 AWG	26 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-3101-000 FL 100	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	24 AWG	26 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-2124-000 FL 100	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	20 AWG	22 AWG	8 çin	0.203 çm	Plug
3M (TC) 37103-2165-000 FL 500	0.079 in	2 mm	Discrete	Closed End	1	Black	IDC	Latch Lock	Free Hanging (In-Line)	Gold	Male Pin	20 AWG	22 AWG	8 çin	0.203 çm	Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.88
		10	$ 2.45
		25	$ 2.30
		50	$ 2.19
		100	$ 2.08
		300	$ 1.93
		500	$ 1.86
		1000	$ 1.77
		2500	$ 1.66
Newark	Each	100	$ 2.36
		100	$ 2.36
		250	$ 2.08
		250	$ 2.08
		500	$ 2.02
		500	$ 2.02
		1000	$ 1.72
		1000	$ 1.72

Description

General part information

37103 Series

3 Position Rectangular Plug Connector IDC Gold 24-26 AWG

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
