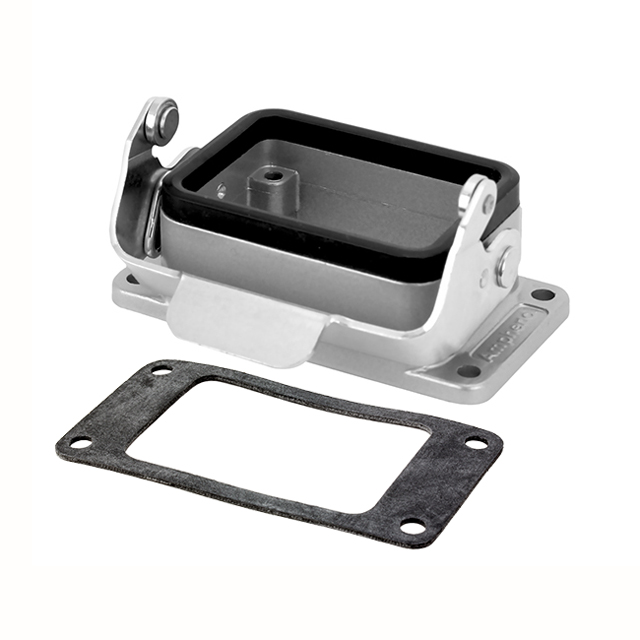

C14610F0060001
ActiveAmphenol Tuchel Industrial
CONN BASE BOTTOM ENTRY SZE6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14610F0060001
ActiveAmphenol Tuchel Industrial
CONN BASE BOTTOM ENTRY SZE6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14610F0060001 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [z] | 1.122 in |
| Size / Dimension [z] | 28.5 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.28 | |
| 10 | $ 16.38 | |||
| 25 | $ 14.08 | |||
| 30 | $ 15.16 | |||
| 50 | $ 14.62 | |||
| 100 | $ 13.93 | |||
| 250 | $ 13.06 | |||
| 500 | $ 12.43 | |||
Description
General part information
C14610F006 Series
Base - Panel Mount Connector Bottom Entry E6 IP65 - Dust Tight, Water Resistant
