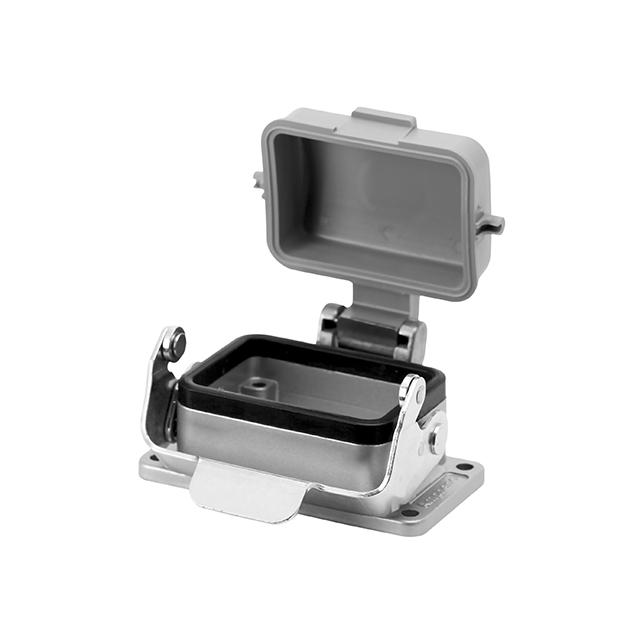

C14610F0060031

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE6

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE6

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0060031

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.122 in
Size / Dimension [z]	28.5 mm
Style	Bottom Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Housing Material	Ingress Protection	Style	Connector Type
Amphenol Tuchel Industrial C14610F0060031	100 °C	-40 °C	Locking Clip (1) on Base Bottom	1.122 in	43 mm	80 mm	28.5 mm	3.15 in	1.693 in	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Bottom Entry	Base - Panel Mount
Amphenol Tuchel Industrial C14610F0060001	100 °C	-40 °C	Locking Clip (1) on Base Bottom	1.122 in	43 mm	80 mm	28.5 mm	3.15 in	1.693 in	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Bottom Entry	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry E6 IP65 - Dust Tight, Water Resistant
