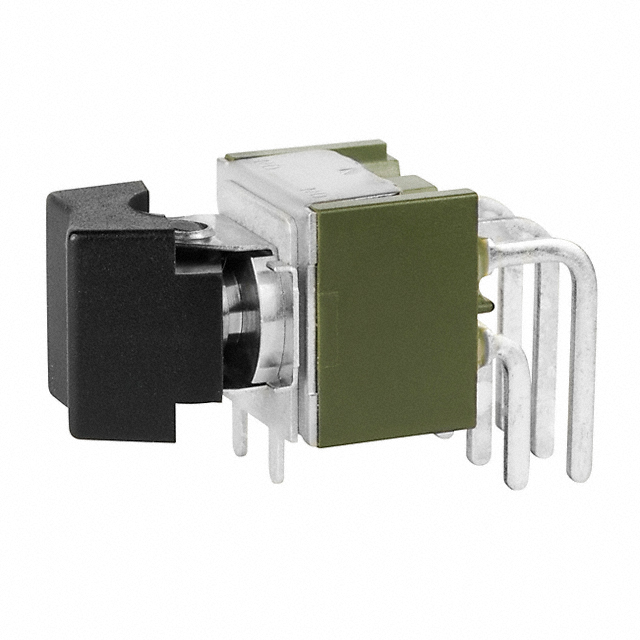

M2022TXW30-FA

Obsolete

NKK Switches

PLUGIN ROCKER SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022TXW30-FA

Obsolete

NKK Switches

PLUGIN ROCKER SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022TXW30-FA

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2022TX Series

Part	Voltage Rating - AC	Actuator Type	Circuit	Approval Agency	Actuator Marking	Electrical Life	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Features	Termination Style	Color - Actuator/Cap	Mounting Type
NKK Switches M2022TXW13/CUL-235A	125 V	Actuator Arm Cap Required	3PDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On
NKK Switches M2022TXG30-KA	28 V	Paddle	DPDT	CSA UL	No Marking	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW30-FA	125 V	Concave (Standard V)	DPDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW41	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Right Angle Through Hole Vertical
NKK Switches M2022TXW13/CUL-235A-DA	125 V	Concave (Standard V)	3PDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On			Black
NKK Switches M2022TXG13-DB	28 V	Concave (Standard V)	DPDT	CSA UL	No Marking	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin	White	Through Hole
NKK Switches M2022TXW30/CUL	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole Right Angle
NKK Switches M2022TXG15/108	28 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole
NKK Switches M2022TXW30-DA	125 V	Concave (Standard V)	DPDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW13	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 24.14
		200	$ 9.63
		500	$ 9.31
		1000	$ 9.15

Description

General part information

M2022TX Series

Rocker Switch DPDT 6A (AC), 4A (DC) 125 V Through Hole, Right Angle
