M2022TXG13-DB

Obsolete

NKK Switches

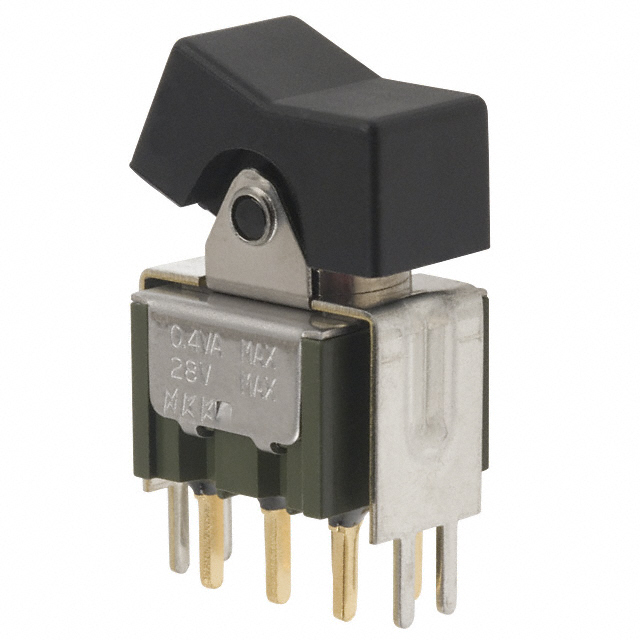

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022TXG13-DB

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022TXG13-DB

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2022TX Series

Part	Voltage Rating - AC	Actuator Type	Circuit	Approval Agency	Actuator Marking	Electrical Life	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Features	Termination Style	Color - Actuator/Cap	Mounting Type
NKK Switches M2022TXW13/CUL-235A	125 V	Actuator Arm Cap Required	3PDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On
NKK Switches M2022TXG30-KA	28 V	Paddle	DPDT	CSA UL	No Marking	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW30-FA	125 V	Concave (Standard V)	DPDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW41	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Right Angle Through Hole Vertical
NKK Switches M2022TXW13/CUL-235A-DA	125 V	Concave (Standard V)	3PDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On			Black
NKK Switches M2022TXG13-DB	28 V	Concave (Standard V)	DPDT	CSA UL	No Marking	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin	White	Through Hole
NKK Switches M2022TXW30/CUL	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole Right Angle
NKK Switches M2022TXG15/108	28 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	50000 Cycles	0.4 VA	-30 ░C	85 °C	28 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole
NKK Switches M2022TXW30-DA	125 V	Concave (Standard V)	DPDT	CSA UL	No Marking	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin	Black	Through Hole Right Angle
NKK Switches M2022TXW13	125 V	Actuator Arm Cap Required	DPDT	CSA UL	Varies by Cap	25000 Steps	4 A 6 A	-30 ░C	85 °C	30 V	On-On	Epoxy Sealed Terminals	PC Pin		Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M2022TX Series

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
