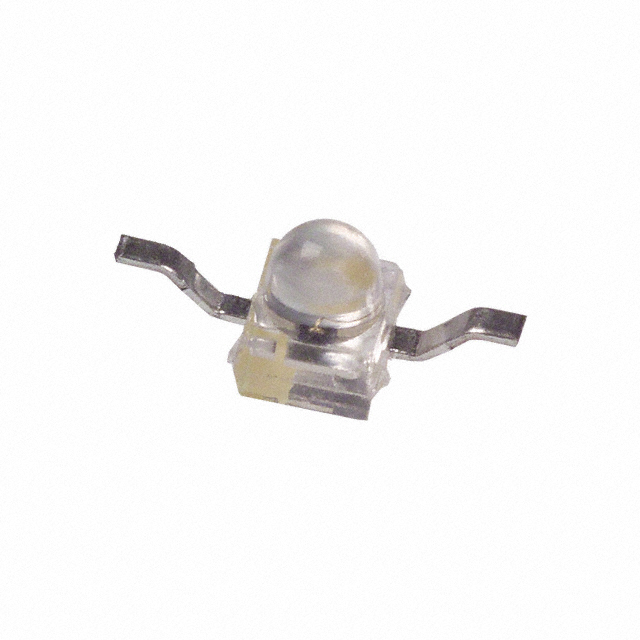

CMD95-21SRCTR10

Obsolete

Visual Communications Company - VCC

LED RED CLEAR ZBEND SMD

Search across all available documentation for this part.

Obsolete

Visual Communications Company - VCC

LED RED CLEAR ZBEND SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Lens Style	Supplier Device Package	Configuration	Lens Transparency	Package / Case	Lens Size [diameter]	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [Max] [z]	Color	Wavelength - Peak [custom]	Height (Max) [Max]
Visual Communications Company - VCC CMD95-21SRC/TR7	2.1 mm	2.2 mm	660 nm	Round with Domed Top	Gull Wing	Standard	Clear	2-SMD Gull Wing	1.8 mm	Surface Mount	25 °	1.7 V	100 mcd	2.88 mm	Red
Visual Communications Company - VCC CMD95-21VRC/TR7	2.1 mm	2.2 mm		Round with Domed Top	Gull Wing	Standard	Clear	2-SMD Gull Wing	1.8 mm	Surface Mount	25 °	2 V	25 mcd	2.88 mm	Red	640 nm
Visual Communications Company - VCC CMD95-21SRCTR10	2.1 mm	2.2 mm	660 nm	Round with Domed Top	Z-Bend	Standard	Clear	2-SMD Z-Bend	1.7 mm	Surface Mount	25 °	1.7 V	100 mcd		Red		2.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red LED Indication - Discrete 1.7V 2-SMD, Z-Bend

Technical documentation and resources

No documents available
