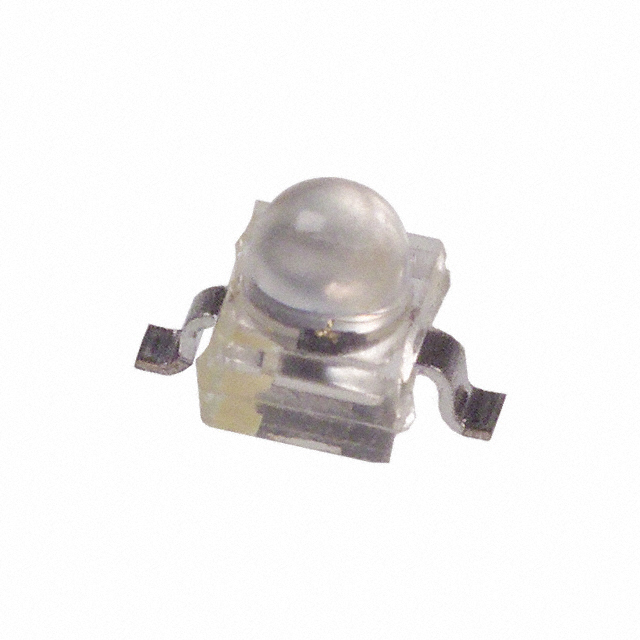

CMD95-21SRC/TR7
ActiveVisual Communications Company - VCC
LED RED CLEAR GULL WING SMD
Deep-Dive with AI
Search across all available documentation for this part.
CMD95-21SRC/TR7
ActiveVisual Communications Company - VCC
LED RED CLEAR GULL WING SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD95-21SRC/TR7 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Height (Max) [Max] [z] | 2.88 mm |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [y] | 2.1 mm |
| Supplier Device Package | Gull Wing |
| Viewing Angle | 25 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.67 | |||
| 100 | $ 0.44 | |||
| Tape & Reel (TR) | 1000 | $ 0.29 | ||
Description
General part information
CMD95-21 Series
Red LED Indication - Discrete 1.7V 2-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
