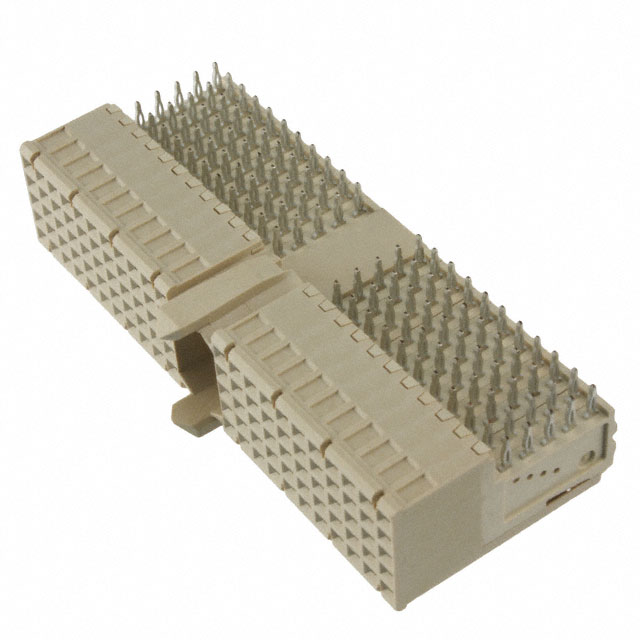

CP2-SA110-1-FJ

Active

3M (TC)

80001202995 CP2-SA110-1-FJ =COMPAK PCI - STD SIGNAL ROHS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

80001202995 CP2-SA110-1-FJ =COMPAK PCI - STD SIGNAL ROHS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Usage
3M (TC) CP2-SA110-G1-KR	Press-Fit	Upper Shield	0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-KR	Press-Fit		0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-TG30	Press-Fit		0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-FJ	Press-Fit		0.079 in	2 mm	0.25 Ám	10 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-G1-TG30	Press-Fit	Upper Shield	0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-G1-FJ	Press-Fit	Upper Shield	0.079 in	2 mm	0.25 Ám	10 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	448	$ 5.31

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
