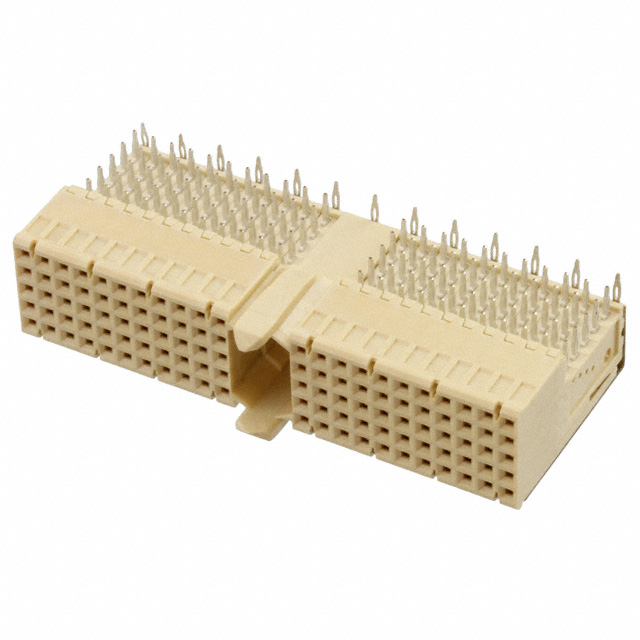

CP2-SA110-G1-KR

Active

3M (TC)

80001203332 CP2-SA110-G1-KR =COMPAK PCI - STD SIGNAL ROHS

Search across all available documentation for this part.

Active

3M (TC)

80001203332 CP2-SA110-G1-KR =COMPAK PCI - STD SIGNAL ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Usage
3M (TC) CP2-SA110-G1-KR	Press-Fit	Upper Shield	0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-KR	Press-Fit		0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-TG30	Press-Fit		0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-1-FJ	Press-Fit		0.079 in	2 mm	0.25 Ám	10 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-G1-TG30	Press-Fit	Upper Shield	0.079 in	2 mm	0.76 Ám	30 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI
3M (TC) CP2-SA110-G1-FJ	Press-Fit	Upper Shield	0.079 in	2 mm	0.25 Ám	10 Áin	Gold	5	Through Hole Right Angle	110 positions	A 22	Receptacle Female Sockets	-55 °C	125 °C	All	CompactPCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
