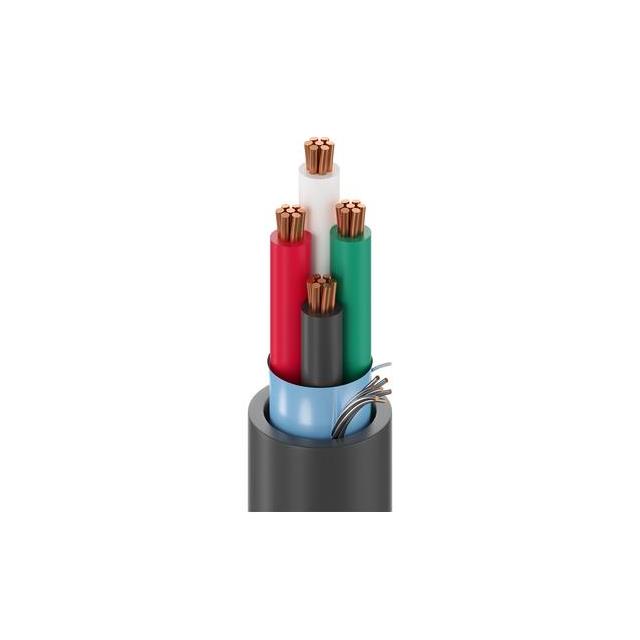

6302FE 877U1000

Active

Belden Inc.

CABLE 4COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	6302FE 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.188 "
Jacket (Insulation) Diameter [diameter]	4.78 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Usage	Length [x]	Length [x]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Cable Type	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Jacket (Insulation) Material	Conductor Material	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Insulation	Shield Coverage	Voltage	Length	Length
Belden Inc. 6302FE 877U500	Alarm Security Sound	500 '	152.4 m	UL Style CMP	26 AWG	7	Natural	18 AWG	Multi-Conductor	Aluminum	75 ░C	0 °C	Drain Wire Rip Cord	Plenum Poly-Vinyl Chloride (PVC)	Copper Bare	Foil	0.015 in	0.381 mm	0.188 "	4.78 mm	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	100 %
Belden Inc. 6302FE 877U1000	Security Sound			UL Style CMP	26 AWG	7	Natural	18 AWG	Multi-Conductor	Aluminum	75 ░C	0 °C	Drain Wire Rip Cord	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Copper Bare	Foil	0.015 in	0.381 mm	0.188 "	4.78 mm	4	Low Smoke Poly-Vinyl Chloride (LSPVC)	100 %	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.43

General part information

4 Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)
