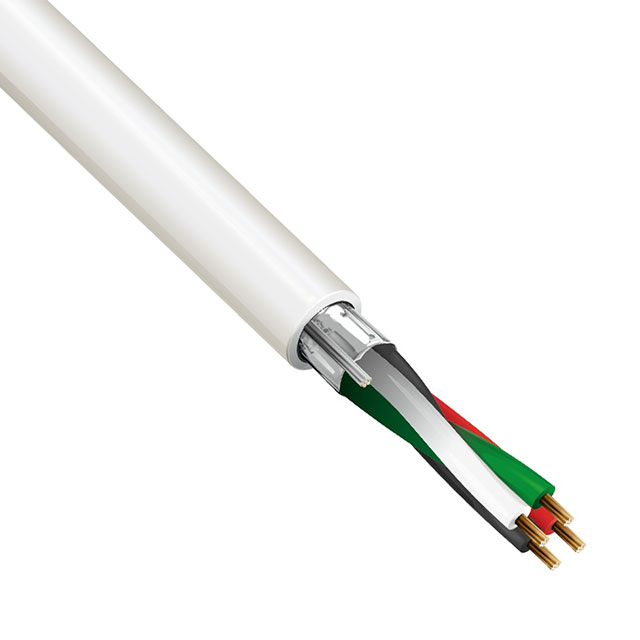

6302FE 877U500
ActiveBelden Inc.
CABLE 4COND 18AWG NAT SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6302FE 877U500
ActiveBelden Inc.
CABLE 4COND 18AWG NAT SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6302FE 877U500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.188 " |
| Jacket (Insulation) Diameter [diameter] | 4.78 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 0.46 | |
| 1000 | $ 0.44 | |||
| 1500 | $ 0.43 | |||
| 2500 | $ 0.41 | |||
| 3500 | $ 0.40 | |||
| 5000 | $ 0.39 | |||
| 12500 | $ 0.37 | |||
| 25000 | $ 0.35 | |||
Description
General part information
6302FE Series
4 Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
