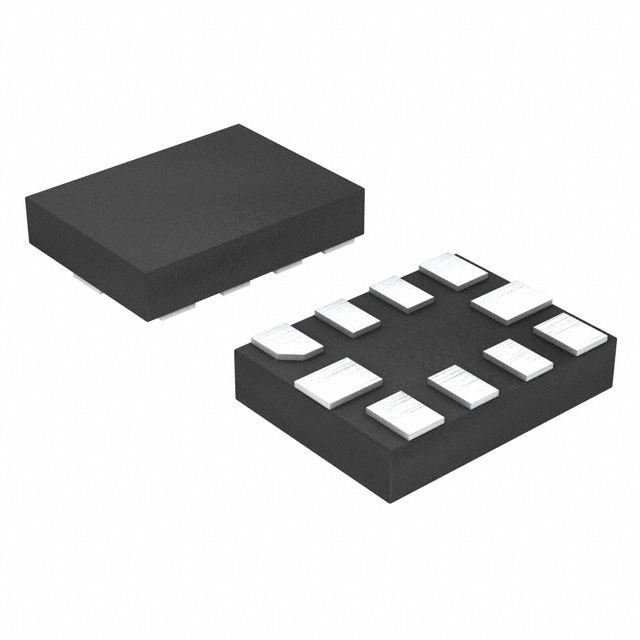

ADS1118IRUGT

Active

Texas Instruments

16-BIT, 860-SPS, 4-CHANNEL, DELTA-SIGMA ADC WITH PGA, OSCILLATOR, VREF, TEMP SENSOR AND SPI 10-X2QFN -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADS1118IRUGT

Active

Texas Instruments

16-BIT, 860-SPS, 4-CHANNEL, DELTA-SIGMA ADC WITH PGA, OSCILLATOR, VREF, TEMP SENSOR AND SPI 10-X2QFN -40 TO 125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADS1118IRUGT	ADS1118 Series

Architecture	Sigma-Delta	Sigma-Delta
Configuration	MUX-PGA-ADC	MUX-PGA-ADC
Data Interface	SPI	SPI
Embedded	-	False
Features	Temperature Sensor, PGA	Temperature Sensor, PGA
Grade	-	Automotive
Input Type	Differential, Single Ended	Differential, Single Ended
Interface	-	SPI, USB
Mounting Type	Surface Mount	Surface Mount
Number of A/D Converters	1	1
Number of Bits	16 bits	16 bits
Number of Inputs	4, 2	2 - 4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-XFQFN	10-TFSOP, 10-MSOP, 10-XFQFN
Qualification	-	AEC-Q100
Reference Type	Internal	Internal
Sampling Rate (Per Second)	860	860
Sensor Type	-	Temperature
Supplied Contents	-	Board(s), Cable(s)
Supplier Device Package	10-X2QFN (2x1.5)	10-VSSOP, 10-X2QFN (2x1.5)
Utilized IC / Part	-	ADS1118
Voltage - Supply, Analog [Max]	5.5 V	5.5 V
Voltage - Supply, Analog [Min]	2 V	2 V
Voltage - Supply, Digital [Max]	5.5 V	5.5 V
Voltage - Supply, Digital [Min]	2 V	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Chip One Stop	N/A	1	$ 3.36
		10	$ 3.34
		50	$ 3.27
		250	$ 3.28
		500	$ 3.19
		750	$ 3.09
		1250	$ 3.06
Chip1Stop	N/A	1	$ 3.41
		10	$ 3.39
		50	$ 3.32
DigiKey	N/A	1	$ 6.23
		10	$ 4.78
		25	$ 4.42
		100	$ 4.03
		250	$ 3.84
		500	$ 3.72
		750	$ 3.66
		1250	$ 3.60
		1750	$ 3.56
		2500	$ 3.53
Digikey	Cut Tape (CT)	1	$ 8.16
		10	$ 5.60
		25	$ 4.94
		100	$ 4.20
	Digi-Reel®	1	$ 8.16
		10	$ 5.60
		25	$ 4.94
		100	$ 4.20
	Tape & Reel (TR)	250	$ 3.84
		500	$ 3.62
		750	$ 3.51
		1250	$ 3.39
		1750	$ 3.32
		2500	$ 3.30
Farnell	N/A	1	$ 6.04
		10	$ 4.60
		25	$ 4.27
		50	$ 4.24
		100	$ 4.20
		100	$ 4.20
		250	$ 4.17
		250	$ 4.17
		500	$ 4.14
		500	$ 4.14
LCSC	N/A	1	$ 11.08
		1	$ 4.16
		1	$ 11.08
		10	$ 3.78
		25	$ 3.72
		30	$ 7.16
		30	$ 7.16
		100	$ 3.66
Mouser Electronics	N/A	1	$ 5.13
		10	$ 4.27
		25	$ 4.07
		100	$ 3.84
		250	$ 3.72
		500	$ 3.52
		1000	$ 3.31
Win Source Electronics	N/A	2	$ 4.16
		10	$ 3.78
		13	$ 4.10
		25	$ 3.72
		30	$ 3.36
		35	$ 1.53
		47	$ 3.26
		64	$ 3.15
		70	$ 1.43
		83	$ 3.05
		100	$ 3.66
		110	$ 2.73
		110	$ 1.38
		160	$ 1.28
		205	$ 1.23
		255	$ 1.18

ADS1118 Series

AUTOMOTIVE 16-BIT, 860-SPS, 4-CH, DELTA-SIGMA ADC WITH PGA, OSCILLATOR, VREF, TEMP SENSOR AND SPI 10-VSSOP -40 TO 125

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Reference Type	Input Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Number of Bits	Data Interface	Grade	Sampling Rate (Per Second)	Qualification	Number of Inputs	Number of A/D Converters	Architecture	Features	Mounting Type	Interface	Sensor Type	Supplied Contents	Utilized IC / Part
Texas Instruments ADS1118QDGSRQ1 The ADS1118-Q1 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals. The ADS1118-Q1 integrates a programmable gain amplifier (PGA), voltage reference, oscillator, and high-accuracy temperature sensor. These features, along with a wide power-supply range from 2 V to 5.5 V, make theADS1118-Q1 ideally suited for power- and space-constrained, sensor-measurement applications. The ADS1118-Q1 performs conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing both large and small signals to be measured with high resolution. An input multiplexer (mux) allows measurement of two differential or four single-ended inputs. The high-accuracy temperature sensor is used for system-level temperature monitoring, or cold-junction compensation for thermocouples. The ADS1118-Q1 operates either in continuous-conversion mode, or in a single-shot mode that automatically powers down after a conversion. Single-shot mode significantly reduces current consumption during idle periods. Data are transferred through a serial peripheral interface (SPI™). The ADS1118-Q1 is specified from –40°C to +125°C. The ADS1118-Q1 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals. The ADS1118-Q1 integrates a programmable gain amplifier (PGA), voltage reference, oscillator, and high-accuracy temperature sensor. These features, along with a wide power-supply range from 2 V to 5.5 V, make theADS1118-Q1 ideally suited for power- and space-constrained, sensor-measurement applications. The ADS1118-Q1 performs conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing both large and small signals to be measured with high resolution. An input multiplexer (mux) allows measurement of two differential or four single-ended inputs. The high-accuracy temperature sensor is used for system-level temperature monitoring, or cold-junction compensation for thermocouples. The ADS1118-Q1 operates either in continuous-conversion mode, or in a single-shot mode that automatically powers down after a conversion. Single-shot mode significantly reduces current consumption during idle periods. Data are transferred through a serial peripheral interface (SPI™). The ADS1118-Q1 is specified from –40°C to +125°C.	2 V	5.5 V	2 V	5.5 V	Internal	Differential, Single Ended	MUX-PGA-ADC	125 °C	-40 °C	10-VSSOP	10-MSOP, 10-TFSOP	16 bits	SPI	Automotive	860	AEC-Q100	2, 4	1	Sigma-Delta	PGA, Temperature Sensor	Surface Mount
Texas Instruments ADS1118IDGST 16 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 10-VSSOP	2 V	5.5 V	2 V	5.5 V	Internal	Differential, Single Ended	MUX-PGA-ADC	125 °C	-40 °C	10-VSSOP	10-MSOP, 10-TFSOP	16 bits	SPI		860		2, 4	1	Sigma-Delta	PGA, Temperature Sensor	Surface Mount
Texas Instruments ADS1118IRUGT 16 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 10-X2QFN (2x1.5)	2 V	5.5 V	2 V	5.5 V	Internal	Differential, Single Ended	MUX-PGA-ADC	125 °C	-40 °C	10-X2QFN (2x1.5)	10-XFQFN	16 bits	SPI		860		2, 4	1	Sigma-Delta	PGA, Temperature Sensor	Surface Mount
Texas Instruments ADS1118IDGSR 16 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 10-VSSOP	2 V	5.5 V	2 V	5.5 V	Internal	Differential, Single Ended	MUX-PGA-ADC	125 °C	-40 °C	10-VSSOP	10-MSOP, 10-TFSOP	16 bits	SPI		860		2, 4	1	Sigma-Delta	PGA, Temperature Sensor	Surface Mount
Texas Instruments ADS1118EVM ADS1118 - Temperature Sensor Evaluation Board																						SPI, USB	Temperature	Board(s), Cable(s)	ADS1118
