PAT-10-JH-B-20-S-9

Active

FiberSource, Inc

LCA-LCU SM 2MM YELLOW SIMPLX 10M

Search across all available documentation for this part.

Active

FiberSource, Inc

LCA-LCU SM 2MM YELLOW SIMPLX 10M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

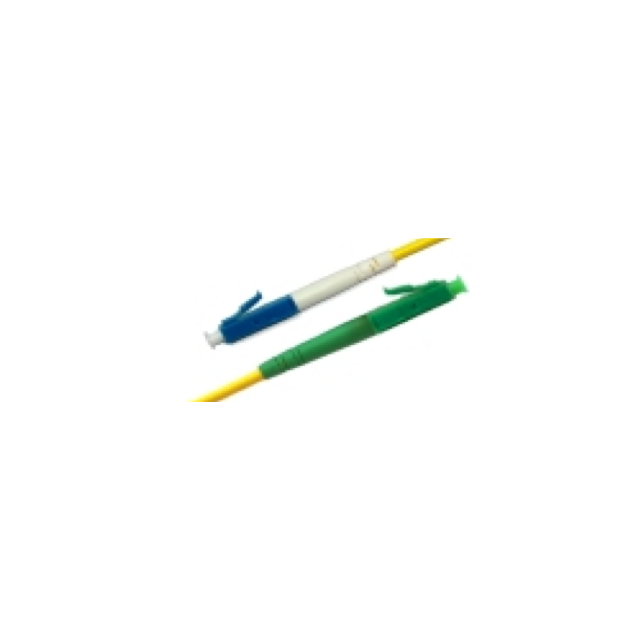

Cable Fiber Optic LC/APC To LC/UPC 9/125 32.8' (10.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-10-JH-B-20-S-9	PAT-10 Series

1st Connector	LC/APC	LC Duplex, SC/APC, LC/UPC, LC/APC, SC Duplex
2nd Connector	LC/UPC	LC Duplex, SC/UPC, SC Duplex, SC/PPC, LC/UPC, SC/APC
Cable Diameter [diameter]	2 mm	2 - 3 mm
Cable Diameter [diameter]	0.08 in	0.08 - 0.12 in
Cable Type	Bend Insensitive Fiber (BIF)	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue, Green	Blue, Green
Features	Low Smoke	Low Smoke
Fiber Type	9/125	50/125, 9/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Length - Overall [x]	10 m	10 m
Length - Overall [x]	32.8 ft	32.8 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	LSZH	LSZH
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Duplex, Simplex, OM3, Multimode

FIBER OPTIC CBL LC-LC DUPLEX 10M

Part	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Return Loss	1st Connector	Type	Color - Connectors	Operating Temperature [Max]	Operating Temperature [Min]	Color - Cable	Fiber Type
FiberSource, Inc PAT-10-HH-B-20-D-9	LC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-DC-B-30-S-9	SC/UPC	3 mm	0.12 in	0.2 dB	10 m	32.8 ft	55 dB, 65 dB	SC/APC	Simplex, Singlemode		85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-JD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HC-B-20-D-9	SC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC/UPC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NL-F-20-D-A	SC/PPC	2 mm	0.08 in		10 m	32.8 ft			Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-JH-B-20-D-9	LC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-CC-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	SC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NN-F-20-D-A	LC Duplex	2 mm	0.08 in		10 m	32.8 ft		LC Duplex	Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-DD-B-20-D-9	SC/APC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	SC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
