PAT-10-DD-B-20-D-9

Active

FiberSource, Inc

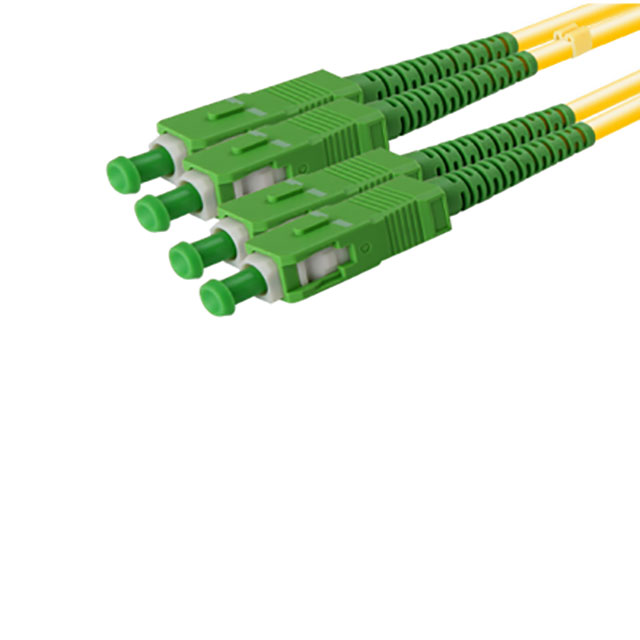

SCA-SCA SM 2MM YELLOW DUPLEX 10M

Search across all available documentation for this part.

Active

FiberSource, Inc

SCA-SCA SM 2MM YELLOW DUPLEX 10M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAT-10-DD-B-20-D-9	PAT-10 Series

1st Connector	SC/APC	LC Duplex, SC/APC, LC/UPC, LC/APC, SC Duplex
2nd Connector	SC/APC	LC Duplex, SC/UPC, SC Duplex, SC/PPC, LC/UPC, SC/APC
Cable Diameter [diameter]	2 mm	2 - 3 mm
Cable Diameter [diameter]	0.08 in	0.08 - 0.12 in
Cable Type	-	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue, Green
Features	-	Low Smoke
Fiber Type	-	50/125, 9/125
Insertion Loss	0.3 dB	0.2 - 0.3 dB
Length - Overall [x]	10 m	10 m
Length - Overall [x]	32.8 ft	32.8 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	-	LSZH
Return Loss	65 dB	55 - 65 dB
Type	Singlemode, Duplex	Singlemode, Duplex, Simplex, OM3, Multimode

FIBER OPTIC CBL LC-LC DUPLEX 10M

Part	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Return Loss	1st Connector	Type	Color - Connectors	Operating Temperature [Max]	Operating Temperature [Min]	Color - Cable	Fiber Type
FiberSource, Inc PAT-10-HH-B-20-D-9	LC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-DC-B-30-S-9	SC/UPC	3 mm	0.12 in	0.2 dB	10 m	32.8 ft	55 dB, 65 dB	SC/APC	Simplex, Singlemode		85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-JD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HC-B-20-D-9	SC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC/UPC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NL-F-20-D-A	SC/PPC	2 mm	0.08 in		10 m	32.8 ft			Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-JH-B-20-D-9	LC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-CC-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	SC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NN-F-20-D-A	LC Duplex	2 mm	0.08 in		10 m	32.8 ft		LC Duplex	Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-DD-B-20-D-9	SC/APC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	SC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic SC/APC To SC/APC 32.8' (10.0m)
