PAT-10-HD-B-20-D-9

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 10M

Search across all available documentation for this part.

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 10M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

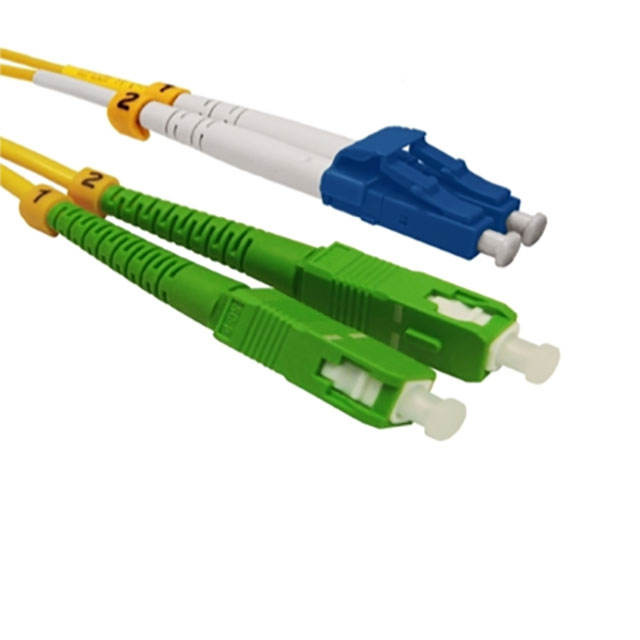

Cable Fiber Optic LC Duplex To SC Duplex 32.8' (10.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-10-HD-B-20-D-9	PAT-10 Series

1st Connector	LC Duplex	LC Duplex, SC/APC, LC/UPC, LC/APC, SC Duplex
2nd Connector	SC Duplex	LC Duplex, SC/UPC, SC Duplex, SC/PPC, LC/UPC, SC/APC
Cable Diameter [diameter]	2 mm	2 - 3 mm
Cable Diameter [diameter]	0.08 in	0.08 - 0.12 in
Cable Type	-	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue, Green
Features	-	Low Smoke
Fiber Type	-	50/125, 9/125
Insertion Loss	0.3 dB	0.2 - 0.3 dB
Length - Overall [x]	10 m	10 m
Length - Overall [x]	32.8 ft	32.8 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	-	LSZH
Return Loss	65 dB	55 - 65 dB
Type	Singlemode, Duplex	Singlemode, Duplex, Simplex, OM3, Multimode

FIBER OPTIC CBL LC-LC DUPLEX 10M

Part	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Return Loss	1st Connector	Type	Color - Connectors	Operating Temperature [Max]	Operating Temperature [Min]	Color - Cable	Fiber Type
FiberSource, Inc PAT-10-HH-B-20-D-9	LC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-DC-B-30-S-9	SC/UPC	3 mm	0.12 in	0.2 dB	10 m	32.8 ft	55 dB, 65 dB	SC/APC	Simplex, Singlemode		85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-JD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HC-B-20-D-9	SC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	LC/UPC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NL-F-20-D-A	SC/PPC	2 mm	0.08 in		10 m	32.8 ft			Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-JH-B-20-D-9	LC/UPC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-CC-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	55 dB	SC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-HD-B-20-D-9	SC Duplex	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	LC Duplex	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-10-NN-F-20-D-A	LC Duplex	2 mm	0.08 in		10 m	32.8 ft		LC Duplex	Duplex, Multimode, OM3	Blue	85 °C	-40 °C		50/125
FiberSource, Inc PAT-10-DD-B-20-D-9	SC/APC	2 mm	0.08 in	0.3 dB	10 m	32.8 ft	65 dB	SC/APC	Duplex, Singlemode	Blue	85 °C	-40 °C	Yellow
