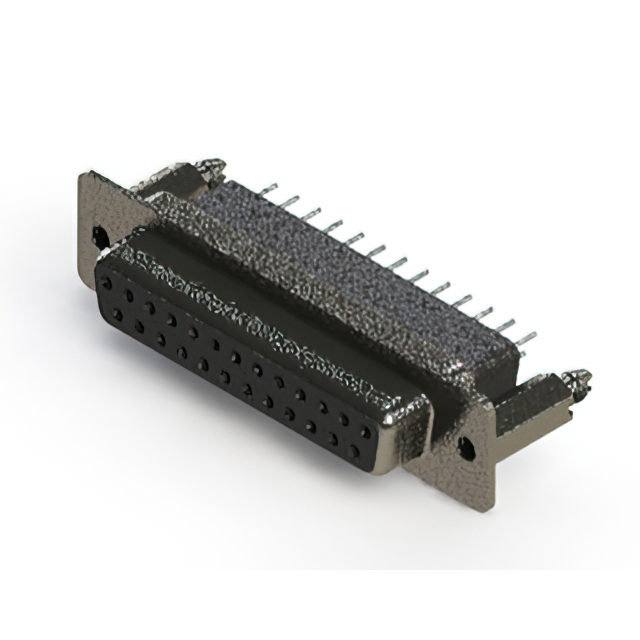

CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628-025-321-076
ActiveEDAC Inc.
CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-025-321-076 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
628-025 Series
...
| Part | Mounting Type | Flange Feature | Number of Rows | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Termination | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Color | Material Flammability Rating | Connector Type | Features | Dielectric Material | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | ||||
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Board Lock Shielded | Polyester Thermoplastic | Nickel Plated Steel | 15 µin | 0.38 µm | |
EDAC Inc. | Free Hanging (In-Line) | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Flash | ||||
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Nickel Plated Steel | 15 µin | 0.38 µm | |
EDAC Inc. | Free Hanging (In-Line) | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Flash | ||||
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Nickel Plated Steel | Flash | ||
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Board Lock Shielded | Polyester Thermoplastic | 15 µin | 0.38 µm | ||
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Nickel Plated Steel | 30 Áin | 0.76 Ám | |
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | Nickel Plated Steel | 15 µin | 0.38 µm | |
EDAC Inc. | Through Hole | 4-40 Board Side | 2 | 3 A | 85 °C | -55 °C | Signal | Gold | Solder | Brass | B DB | 3 | D-Sub | Black | UL94 V-0 | Receptacle Female Sockets | Shielded | Polyester Thermoplastic | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 4.37 | |
Description
General part information
628-025 Series
25 Position D-Sub Receptacle, Female Sockets Connector
