EDAC Inc.

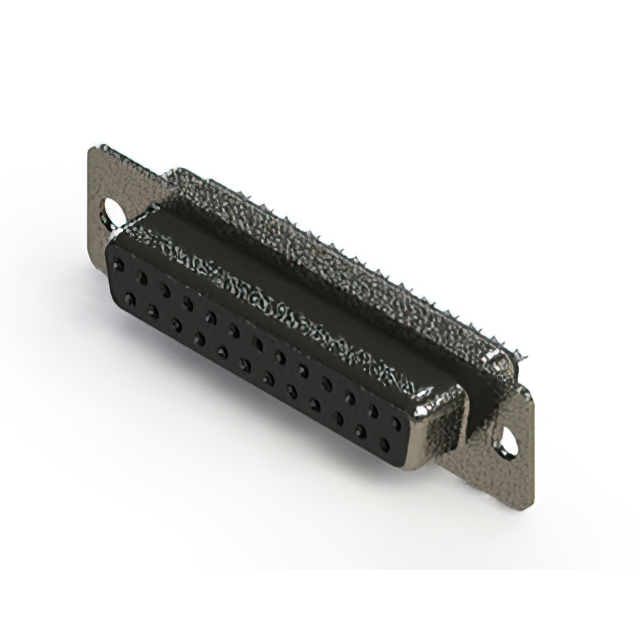

CONN D-SUB RCPT 25POS SLDR CUP

628-025-222-261

Active

EDAC Inc.

CONN D-SUB RCPT 25POS SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

628-025 Series

25 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-025-222-261

Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder Cup

628-025 Series

...

Part	Dielectric Material	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Finish	Shell Material	Connector Type	Mounting Type	Termination	Flange Feature	Number of Positions	Features	Shell Size	Connector Layout	Contact Type	Contact Finish	Number of Rows	Connector Style	Material Flammability Rating	Current Rating (Per Contact)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 628-025-010-251	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Tin Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A
EDAC Inc. 628-025-321-076	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Nickel Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Board Lock Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	15 µin
EDAC Inc. 628-025-381-257	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Tin Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Board Lock Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	15 µin
EDAC Inc. 628-025-222-261	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Tin Plated	Steel	Female Sockets Receptacle	Free Hanging (In-Line)	Solder Cup	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	0	Flash	Flash
EDAC Inc. 628-025-320-043	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Nickel Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	15 µin
EDAC Inc. 628-025-222-248	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Tin Plated	Steel	Female Sockets Receptacle	Free Hanging (In-Line)	Solder Cup	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	0	Flash	Flash
EDAC Inc. 628-025-222-048	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Nickel Plated	Steel	Female Sockets Receptacle	Free Hanging (In-Line)	Solder Cup	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	0	Flash	Flash
EDAC Inc. 628-025-221-078	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Nickel Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	0	Flash	Flash
EDAC Inc. 628-025-321-277	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Tin Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Board Lock Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	15 µin
EDAC Inc. 628-025-621-052	Polyester Thermoplastic	Brass	Black	-55 °C	85 °C	Nickel Plated	Steel	Female Sockets Receptacle	Through Hole	Solder	Board Side (4-40)	25	Shielded	3	B DB	Signal	Gold	2	D-Sub	UL94 V-0	3 A	30 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

628-025-222-261 | Datasheet
