TC-240-BM-RA-D
ActiveAmphenol Times Microwave Systems

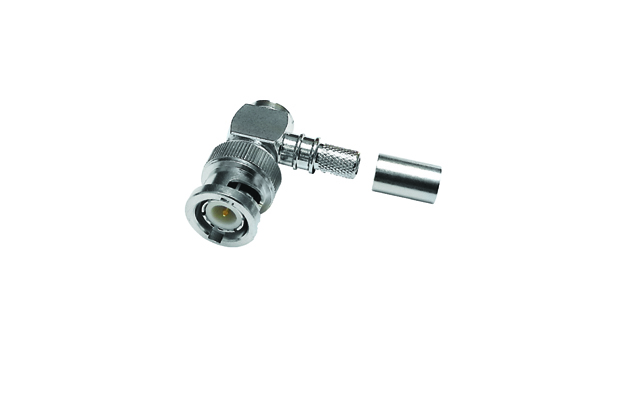

BNC-MALE (PLUG) RIGHT ANGLE, CRI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC-240-BM-RA-D
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) RIGHT ANGLE, CRI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC-240-BM-RA-D | TC-240 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Silver, Nickel |
| Body Material | Brass | Brass, Beryllium Copper, Stainless Steel |
| Cable Group | LMR-240 | LMR-240, LMR-240-75 |
| Center Contact Material | Brass | Brass, Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | FME, BNC, N Type, RP-SMA, F Type, 4.3/10, SMA, 7/16 DIN |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Solder | Solder, Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Frequency - Max [Max] | 6000 MHz | 1 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Includes | - | 1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insertion Loss | - | 0.05 - 0.1 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Flange, Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -40 °C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | 500 V | 500 V |
TC-240 Series
FME MALE (PLUG) CRIMP CONNECTOR,
| Part | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Center Contact Plating | Includes | Body Finish | Cable Group | Contact Termination | Mounting Type | Shield Termination | Body Material | Center Contact Material | Housing Color | Frequency - Max [Max] | Impedance | Connector Style | Mating Cycles | Voltage Rating | Dielectric Material | Insertion Loss | Fastening Type | Mounting Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems TC-240-FMEM-X | 1 | -55 °C | 125 °C | Male Pin, Plug | Gold | 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator | White Bronze | LMR-240 | Solder | Free Hanging (In-Line) | Crimp | Brass | Brass | Silver | 2 GHz | 50 Ohms | FME | 500 | 500 V | Polytetrafluoroethylene (PTFE) | ||||
Amphenol Times Microwave Systems TC-240-BMC | 1 | -40 °C | 85 °C | Male Pin, Plug | Gold | Silver | LMR-240 | Solder | Free Hanging (In-Line) | Clamp | Beryllium Copper, Brass | Brass | Silver | 1 GHz, 2.5 GHz | 50 Ohms | BNC | 500 | 500 V | Polytetrafluoroethylene (PTFE) | 0.1 dB | Bayonet Lock | |||
Amphenol Times Microwave Systems TC-240-NM-75 | 1 | -40 °C | 85 °C | Male Pin, Plug | Gold | Nickel | LMR-240-75 | Solder | Free Hanging (In-Line) | Crimp | Brass | Brass | Silver | 2 GHz | 75 Ohms | N Type | 500 V | Polytetrafluoroethylene (PTFE) | ||||||
Amphenol Times Microwave Systems TC-240-BM-75-X | 1 | -55 °C | 125 °C | Male Pin, Plug | Gold | White Bronze | LMR-240-75 | Solder | Free Hanging (In-Line) | Crimp | Brass | Brass | Silver | 4 GHz | 75 Ohms | BNC | 500 | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | ||||
Amphenol Times Microwave Systems TC-240-SM-RP | 1 | -40 °C | 85 °C | Female Socket, Plug | Gold | LMR-240 | Solder | Free Hanging (In-Line) | Crimp | Stainless Steel | Beryllium Copper | Silver | 2.5 GHz | 50 Ohms | RP-SMA | |||||||||
Amphenol Times Microwave Systems TC-240-NF-PM-X | 1 | -65 ░C | 165 °C | Female Socket, Jack | Gold | White Bronze | LMR-240 | Solder | Crimp | Brass | Beryllium Copper, Brass | Silver | 6000 MHz | 50 Ohms | N Type | Polytetrafluoroethylene (PTFE) | Flange | |||||||
Amphenol Times Microwave Systems TC-240-FM-X | 1 | -65 ░C | 165 °C | Male Pin, Plug | Gold | White Bronze | LMR-240 | Solder | Free Hanging (In-Line) | Crimp | Brass | Beryllium Copper | Silver | 2 GHz | 50 Ohms | F Type | Polytetrafluoroethylene (PTFE) | |||||||
Amphenol Times Microwave Systems TC-240-4310M-X | 1 | -40 °C | 125 °C | Male Pin, Plug | Gold | White Bronze | LMR-240 | Solder | Free Hanging (In-Line) | Crimp | Brass | Brass | Silver | 6000 MHz | 50 Ohms | 4.3/10 | 500 | Polytetrafluoroethylene (PTFE) | ||||||
Amphenol Times Microwave Systems TC-240-SM-RA-SS-D | 1 | -40 °C | 125 °C | Male Pin, Plug | Gold | LMR-240 | Solder | Free Hanging (In-Line), Right Angle | Crimp | Stainless Steel | Brass | Silver | 6000 MHz | 50 Ohms | SMA | 500 | Polytetrafluoroethylene (PTFE) | |||||||
Amphenol Times Microwave Systems TC-240-NMC | 1 | -65 ░C | 165 °C | Male Pin, Plug | Gold | Silver | LMR-240 | Solder | Free Hanging (In-Line) | Clamp | Brass | Brass | Silver | 11 GHz | 50 Ohms | N Type | Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.68 | |
| 10 | $ 18.11 | |||
| 25 | $ 17.33 | |||
| 50 | $ 16.77 | |||
| 100 | $ 16.21 | |||
| 250 | $ 15.32 | |||
| 500 | $ 14.87 | |||
| Retail Package | 1 | $ 24.53 | ||
| 25 | $ 23.56 | |||
| 50 | $ 22.82 | |||
| 100 | $ 22.33 | |||
Description
General part information
TC-240 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
