SUP85N04-03-E3

Obsolete

Vishay Siliconix

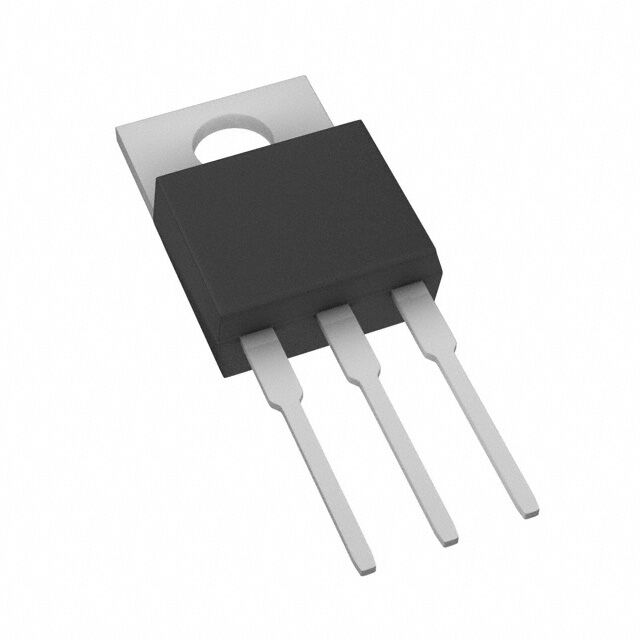

MOSFET N-CH 40V 85A TO220AB

Search across all available documentation for this part.

Obsolete

Vishay Siliconix

MOSFET N-CH 40V 85A TO220AB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SUP85N04-03-E3	SUP85 Series

Current - Continuous Drain (Id) @ 25°C	85 A	85 A
Drain to Source Voltage (Vdss)	40 V	20 - 150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V	2.5 - 10 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs	-	90 - 160 nC
Input Capacitance (Ciss) (Max) @ Vds	6860 pF	4500 - 21250 pF
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	TO-220-3	TO-220-3
Power Dissipation (Max)	250 W, 3.75 W	2.4 - 300 W
Power Dissipation (Max)	-	250 W
Rds On (Max) @ Id, Vgs	3.5 mOhm	3 - 21 mOhm
Supplier Device Package	TO-220AB	TO-220AB
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	20 V	8 - 20 V
Vgs(th) (Max) @ Id	3 V	3 - 450 mV

MOSFET N-CH 20V 85A TO220AB

Part	Mounting Type	Power Dissipation (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Supplier Device Package	Vgs (Max)	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max)
Vishay Siliconix SUP85N02-03-E3	Through Hole	250 W	TO-220-3	-55 °C	175 ░C	3 mOhm	20 V	85 A	450 mV	2.5 V, 4.5 V	21250 pF	N-Channel	TO-220AB	8 V	MOSFET (Metal Oxide)
Vishay Siliconix SUP85N15-21-E3	Through Hole		TO-220-3	-55 °C	175 ░C	21 mOhm	150 V	85 A	4 V	10 V	4750 pF	N-Channel	TO-220AB	20 V	MOSFET (Metal Oxide)	110 nC	2.4 W, 300 W
Vishay Siliconix SUP85N10-10-GE3	Through Hole		TO-220-3	-55 °C	175 ░C	10.5 mOhm	100 V	85 A	3 V	4.5 V, 10 V		N-Channel		20 V	MOSFET (Metal Oxide)	160 nC	3.75 W, 250 W
Vishay Siliconix SUP85N04-03-E3	Through Hole		TO-220-3	-55 °C	175 ░C	3.5 mOhm	40 V	85 A	3 V	4.5 V, 10 V	6860 pF	N-Channel	TO-220AB	20 V	MOSFET (Metal Oxide)		3.75 W, 250 W
Vishay Siliconix SUP85N03-04P-E3	Through Hole		TO-220-3	-55 °C	175 ░C	4.3 mOhm	30 V	85 A	3 V	4.5 V, 10 V	4500 pF	N-Channel	TO-220AB	20 V	MOSFET (Metal Oxide)	90 nC	3.75 W, 166 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 40 V 85A (Tc) 3.75W (Ta), 250W (Tc) Through Hole TO-220AB
