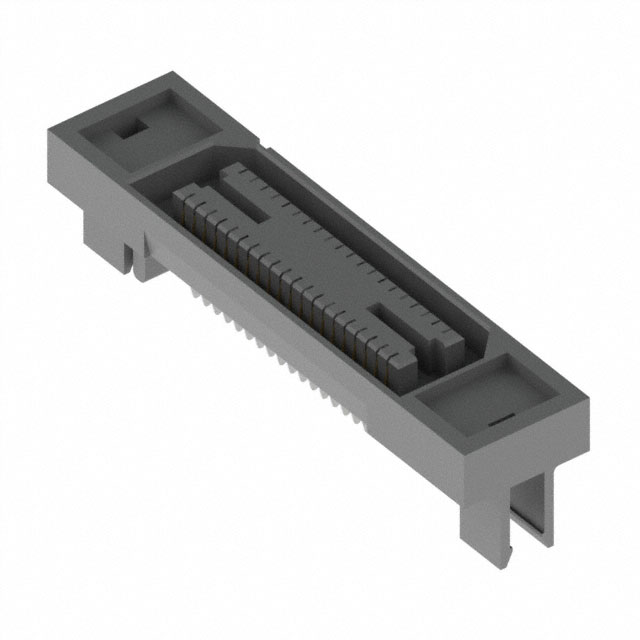

Specification	BSE-020-01-L-D-EM2

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Mounting Type	Straddle Mount, Board Edge
Number of Positions	40
Number of Rows	2
Pitch	0.031 in

BSE-020 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Socket Strip

Part	Contact Finish	Number of Rows	Connector Type	Height Above Board	Number of Positions	Pitch	Mounting Type	Mated Stacking Height Options	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features
Samtec Inc. BSE-020-01-F-D	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	0	Flash	Flash
Samtec Inc. BSE-020-01-L-D-FL	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	10 Ąin			Friction Lock
Samtec Inc. BSE-020-01-F-D-EM2-GP	Gold	2	Center Strip Contacts Receptacle		40	0.031 in	Board Edge Straddle Mount		0	Flash	Flash	Mating Guide
Samtec Inc. BSE-020-01-C-D	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	50 µin
Samtec Inc. BSE-020-01-L-D-A-FL-TR	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	10 Ąin			Board Guide Friction Lock
Samtec Inc. BSE-020-01-L-D-EM2	Gold	2	Center Strip Contacts Receptacle		40	0.031 in	Board Edge Straddle Mount		10 Ąin
Samtec Inc. BSE-020-01-F-D-A-FL	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	0	Flash	Flash	Board Guide Friction Lock
Samtec Inc. BSE-020-01-L-D-TR	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	10 Ąin
Samtec Inc. BSE-020-01-L-D-EM2-GP	Gold	2	Center Strip Contacts Receptacle		40	0.031 in	Board Edge Straddle Mount		10 Ąin			Mating Guide
Samtec Inc. BSE-020-01-F-D-A-TR	Gold	2	Center Strip Contacts Receptacle	0.128 in	40	0.031 in	Surface Mount	5mm 8mm	0	Flash	Flash	Board Guide
