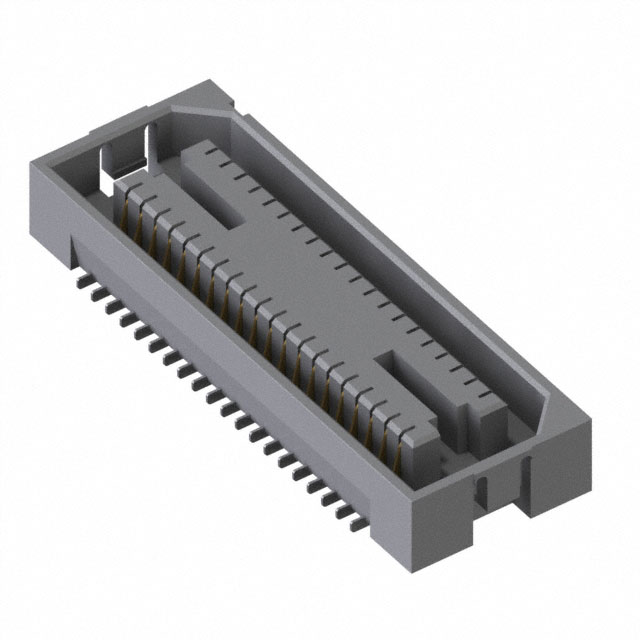

BSE-020-01-L-D-FL

Active

Samtec Inc.

CONN RCPT 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

BSE-020-01-L-D-FL

Active

Samtec Inc.

CONN RCPT 40POS SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-020-01-L-D-FL

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Friction Lock
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BSE-020 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Number of Positions	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. BSE-020-01-F-D	0.8 mm	0.031 in	Gold	Flash	40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle
Samtec Inc. BSE-020-01-L-D-FL	0.8 mm	0.031 in	Gold		40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Friction Lock
Samtec Inc. BSE-020-01-F-D-EM2-GP	0.8 mm	0.031 in	Gold	Flash	40		2			Board Edge Straddle Mount	Center Strip Contacts Receptacle			Mating Guide
Samtec Inc. BSE-020-01-C-D	0.8 mm	0.031 in	Gold		40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle	50 µin	1.27 µm
Samtec Inc. BSE-020-01-L-D-A-FL-TR	0.8 mm	0.031 in	Gold		40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Board Guide Friction Lock
Samtec Inc. BSE-020-01-L-D-EM2	0.8 mm	0.031 in	Gold		40		2			Board Edge Straddle Mount	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Samtec Inc. BSE-020-01-F-D-A-FL	0.8 mm	0.031 in	Gold	Flash	40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle			Board Guide Friction Lock
Samtec Inc. BSE-020-01-L-D-TR	0.8 mm	0.031 in	Gold		40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Samtec Inc. BSE-020-01-L-D-EM2-GP	0.8 mm	0.031 in	Gold		40		2			Board Edge Straddle Mount	Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Mating Guide
Samtec Inc. BSE-020-01-F-D-A-TR	0.8 mm	0.031 in	Gold	Flash	40	5 mm 8 mm	2	3.25 mm	0.128 in	Surface Mount	Center Strip Contacts Receptacle			Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.47

Description

General part information

BSE-020 Series

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
