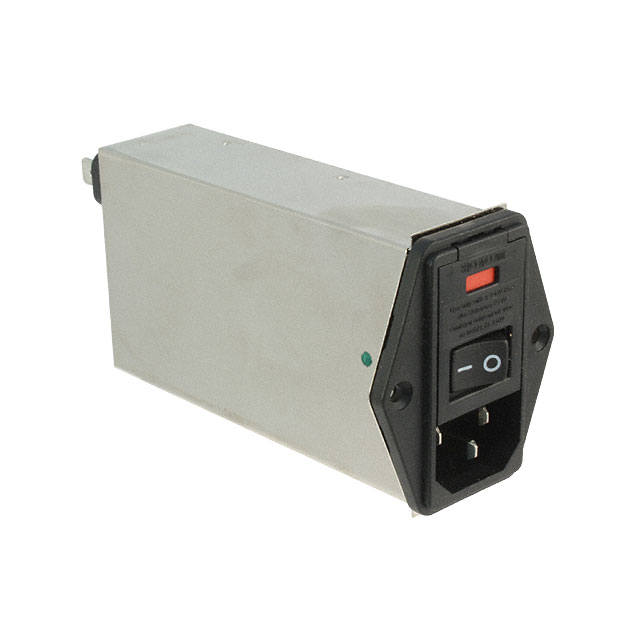

PE0S0SZXC

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE0S0SZXC	PE0S0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	3 - 10 A
Current Rating - Filter	10 A	3 - 10 A
Features	Conversion Clip	Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	-	Variable Size
Panel Cutout Dimensions [x]	29.21 mm	29.21 mm
Panel Cutout Dimensions [y]	55.91 mm	55.91 mm
Panel Thickness	-	2.9 mm
Panel Thickness	-	0.114 in
Panel Thickness	-	0.79 mm
Panel Thickness	-	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Connector Style	Fuse Holder, Drawer	Switch Features	Mounting Type	Features	Current Rating - Appliance Inlet	Connector Type	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Cutout Dimensions
TE Connectivity Corcom Filters PE0S0SZXC	10 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	10 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC
TE Connectivity Corcom Filters PE0S0SZ6C	6 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	6 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC
TE Connectivity Corcom Filters PE0S0SS30	3 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	3 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial			CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC	2.9 mm	0.114 in	0.79 mm	0.031 "	Variable Size
TE Connectivity Corcom Filters PE0S0SL6C	6 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	6 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
