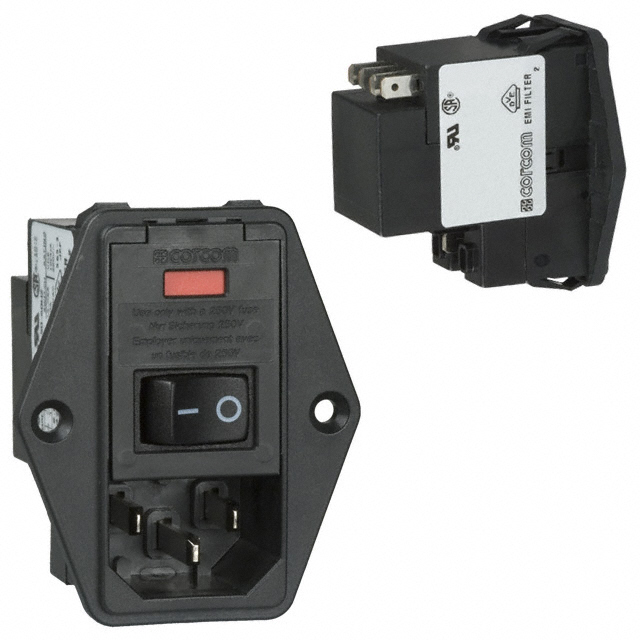

PE0S0SS30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Specification	PE0S0SS30	PE0S0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A	3 - 10 A
Current Rating - Filter	3 A	3 - 10 A
Features	Conversion Clip	Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Cutout Dimensions	-	29.21 mm
Panel Cutout Dimensions	-	55.91 mm
Panel Thickness [Max]	2.9 mm	2.9 mm
Panel Thickness [Max]	0.114 in	0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part	Current Rating - Filter	Connector Style	Fuse Holder, Drawer	Switch Features	Mounting Type	Features	Current Rating - Appliance Inlet	Connector Type	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Cutout Dimensions
TE Connectivity Corcom Filters PE0S0SZXC	10 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	10 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC
TE Connectivity Corcom Filters PE0S0SZ6C	6 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	6 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC
TE Connectivity Corcom Filters PE0S0SS30	3 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	3 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial			CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC	2.9 mm	0.114 in	0.79 mm	0.031 "	Variable Size
TE Connectivity Corcom Filters PE0S0SL6C	6 A	IEC 320-C14	Fuse Holder	Switch On-Off	Flange, Panel Mount	Conversion Clip	6 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	29.21 mm	55.91 mm	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect	120 VAC
