09100033205

Obsolete

HARTING

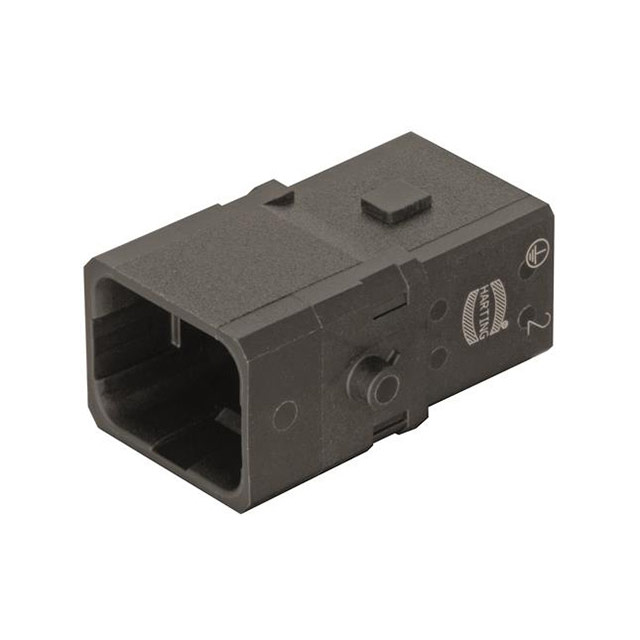

1A 3+PE MALE CRIMP INSERT FOR LO

Search across all available documentation for this part.

Obsolete

HARTING

1A 3+PE MALE CRIMP INSERT FOR LO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Male Insert Black 3+Ground Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09100033205	09100033 Series

Color	Black	Black
Connector Type	-	Insert without Contacts
Contact Type	-	Han® D
Current Rating (Amps)	16 A	10 - 16 A
Gender	Male	Female, Male
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	3+Ground	3+Ground
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Crimp	Crimp
Voltage Rating	400 V	400 V

1A 3+PE FEMALE SHIELDED CRIMP IN

Part	Number of Positions	Housing Material	Current Rating (Amps)	Color	Termination Style	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Size	Gender	Connector Type	Contact Type
HARTING 09100033100	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033005	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033101	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female	Insert without Contacts	Han® D
HARTING 09100033006	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male	Insert without Contacts	Han® D
HARTING 09100033105	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033300	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033305	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033205	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033200	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033000	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
