09100033006

Active

HARTING

1A 3+PE MALE SHIELD CRIMP LLEVER

Search across all available documentation for this part.

Active

HARTING

1A 3+PE MALE SHIELD CRIMP LLEVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

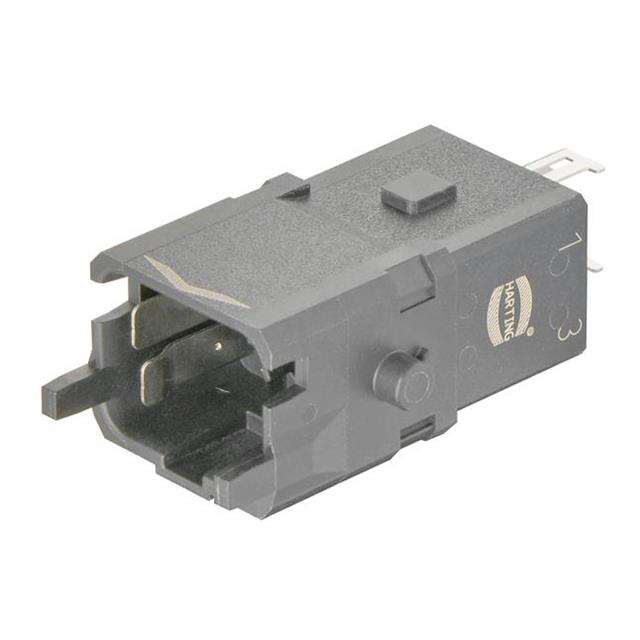

Male Insert without Contacts Black 3+Ground Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09100033006	09100033 Series

Color	Black	Black
Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	Han® D	Han® D
Current Rating (Amps)	10 A	10 - 16 A
Gender	Male	Female, Male
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	3+Ground	3+Ground
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Crimp	Crimp
Voltage Rating	400 V	400 V

1A 3+PE FEMALE SHIELDED CRIMP IN

Part	Number of Positions	Housing Material	Current Rating (Amps)	Color	Termination Style	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Size	Gender	Connector Type	Contact Type
HARTING 09100033100	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033005	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033101	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female	Insert without Contacts	Han® D
HARTING 09100033006	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male	Insert without Contacts	Han® D
HARTING 09100033105	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033300	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033305	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Female
HARTING 09100033205	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033200	3+Ground	Polyamide (PA), Nylon	16 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
HARTING 09100033000	3+Ground	Polyamide (PA), Nylon	10 A	Black	Crimp	400 V	UL94 V-0	-30 ░C	90 °C	1 A	Male
