88-SUPER-1-1/2X36YD

Active

3M (TC)

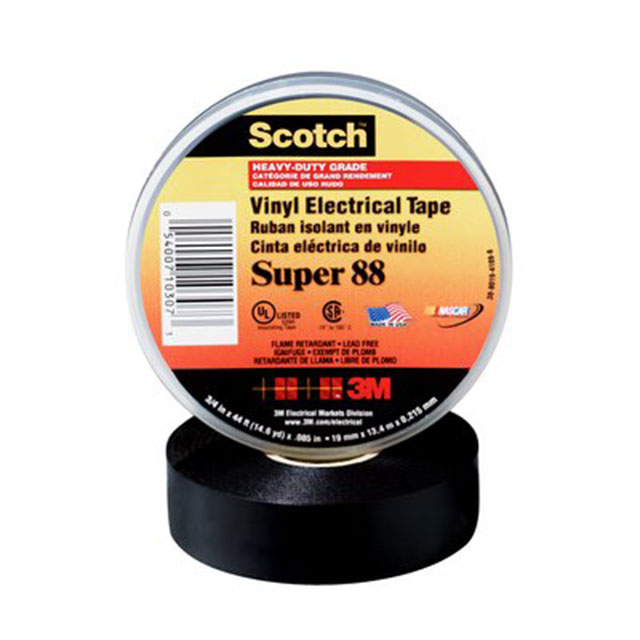

TAPE ELECTRICAL BLK 1 1/2"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTRICAL BLK 1 1/2"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	88-SUPER-1-1/2X36YD

Adhesive	Rubber
Backing, Carrier	PVC (Poly Vinyl Chloride)
Color	Black
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range	105 °C
Temperature Range	220 °F
Thickness	0.216 mm
Thickness	0.0085 inches
Thickness	8.5 mils
Usage	General Purpose
Width	1.5 "
Width	38.1 mm
Width	1 1/2

Part	Width	Width	Width	Length	Length	Length	Thickness	Thickness	Thickness	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Adhesive	Usage	Temperature Range	Temperature Range	Shelf Life	Backing, Carrier	Tape Type	Shelf Life Start	Width	Length [x]	Length [x]	Length [x]
3M (TC) 88-SUPER-3/4X36YD	0.75 in	19.05 mm	0.75 in	36 yd	32.9 m	108 ft	0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture
3M (TC) 88-SUPER-1-1/2X44FT	1.5 "		38.1 mm				0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture	1 1/2	14.7 yds	44 ft	13.4 m
3M (TC) 88-SUPER-1-1/2X36YD	1.5 "		38.1 mm	36 yd	32.9 m	108 ft	0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture	1 1/2
3M (TC) 88-SUPER-3/4X44FT	0.75 in	19.05 mm	0.75 in				0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture		14.7 yds	44 ft	13.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 37.41

General part information

Electrical Tape Rubber Adhesive Black 1.50" (38.10mm) 1 1/2" X 108' (32.9m) 36 yds
