88-SUPER-3/4X36YD

Active

3M (TC)

TAPE, PRESSURE SENSITIVE ADHESIVE, PRESSURE SENSITIVE RUBBER BASED ADHESIVE

Search across all available documentation for this part.

Active

3M (TC)

TAPE, PRESSURE SENSITIVE ADHESIVE, PRESSURE SENSITIVE RUBBER BASED ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	88-SUPER-3/4X36YD

Adhesive	Rubber
Backing, Carrier	PVC (Poly Vinyl Chloride)
Color	Black
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range	105 °C
Temperature Range	220 °F
Thickness	0.216 mm
Thickness	0.0085 inches
Thickness	8.5 mils
Usage	General Purpose
Width	0.75 in
Width	19.05 mm
Width	0.75 in

Part	Width	Width	Width	Length	Length	Length	Thickness	Thickness	Thickness	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Adhesive	Usage	Temperature Range	Temperature Range	Shelf Life	Backing, Carrier	Tape Type	Shelf Life Start	Width	Length [x]	Length [x]	Length [x]
3M (TC) 88-SUPER-3/4X36YD	0.75 in	19.05 mm	0.75 in	36 yd	32.9 m	108 ft	0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture
3M (TC) 88-SUPER-1-1/2X44FT	1.5 "		38.1 mm				0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture	1 1/2	14.7 yds	44 ft	13.4 m
3M (TC) 88-SUPER-1-1/2X36YD	1.5 "		38.1 mm	36 yd	32.9 m	108 ft	0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture	1 1/2
3M (TC) 88-SUPER-3/4X44FT	0.75 in	19.05 mm	0.75 in				0.216 mm	0.0085 inches	8.5 mils	Black	27 °C 80 °F	10 °C	Rubber	General Purpose	105 °C	220 °F	60 Months	PVC (Poly Vinyl Chloride)	Electrical	Date of Manufacture		14.7 yds	44 ft	13.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

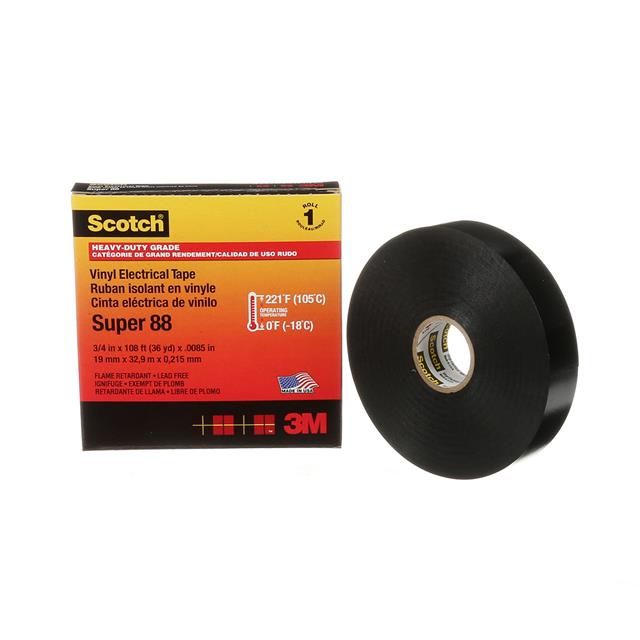

Electrical Tape Rubber Adhesive Black 0.75" (19.05mm) 3/4" X 108' (32.9m) 36 yds
