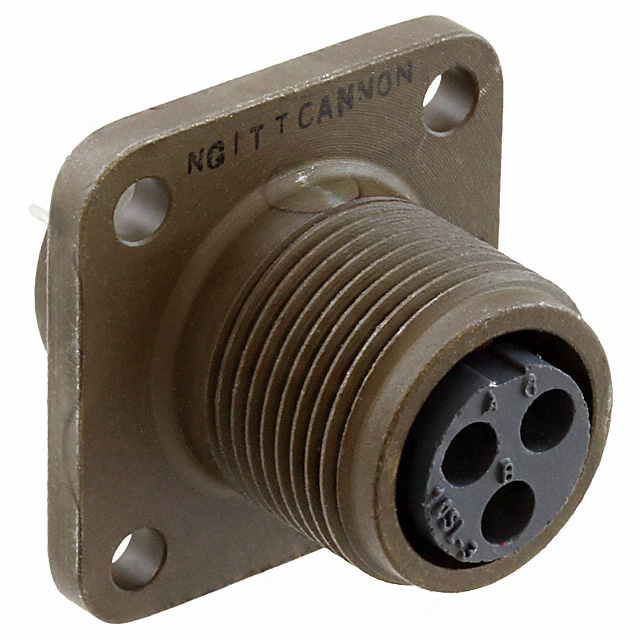

MS3102R10SL-3S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MIL-DTL-5015 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MIL-DTL-5015 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Mounting Feature	Primary Material	Grade	Current Rating (Amps)	Shell Finish	Voltage Rating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material	Connector Type	Qualification	Orientation	Color
ITT Cannon, LLC MS3102R10SL-3P	Environment Resistant	Flange	Metal	Military	22 A	Olive Drab Cadmium	500 VAC 700 VDC	10SL-3	-55 °C	125 °C	Silver	Aluminum Alloy	Male Pins Receptacle	MIL-DTL-5015	N	Olive Drab
ITT Cannon, LLC MS3102R10SL-3S	Environment Resistant	Flange	Metal	Military	22 A	Olive Drab Cadmium	500 VAC 700 VDC	10SL-3	-55 °C	125 °C	Silver	Aluminum Alloy	Receptacle Female Sockets	MIL-DTL-5015	N	Olive Drab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
