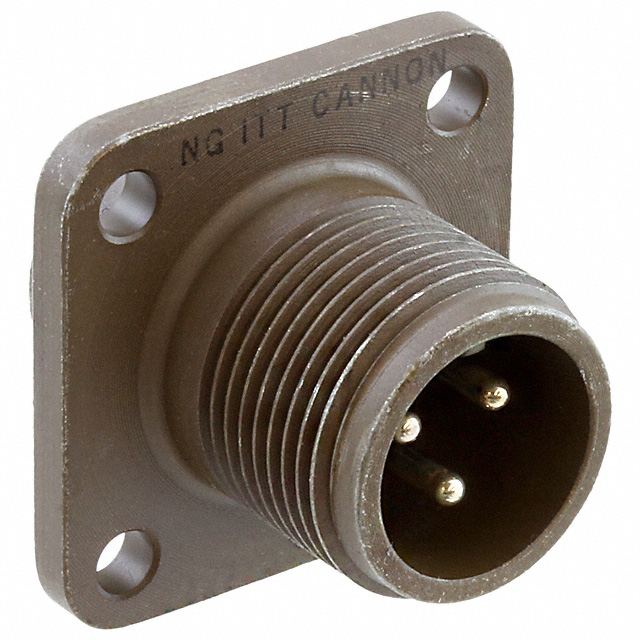

MS3102R10SL-3P
ActiveITT Cannon, LLC
CONN RCPT MALE 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
MS3102R10SL-3P
ActiveITT Cannon, LLC
CONN RCPT MALE 3P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102R10SL-3P |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 22 A |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 |
| Voltage Rating | 700 VDC, 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.85 | |
| 10 | $ 20.01 | |||
| 25 | $ 19.15 | |||
| 50 | $ 18.53 | |||
| 100 | $ 17.91 | |||
| 250 | $ 16.92 | |||
| 500 | $ 16.43 | |||
Description
General part information
MS3102R10 Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
