146139-3

Obsolete

TE Connectivity Raychem Cable Protection

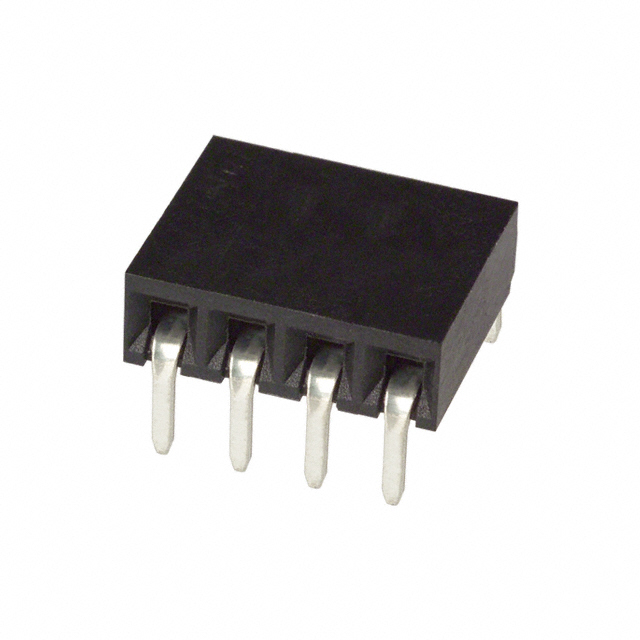

CONN RCPT 4POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 4POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	146139-3

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.47 mm
Insulation Height	0.137 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Fastening Type	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity Raychem Cable Protection 146139-3	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	4	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 146139-1	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	2	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 146139-9	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	10	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
