146139-9

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 10POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 10POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	146139-9

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.47 mm
Insulation Height	0.137 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Fastening Type	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity Raychem Cable Protection 146139-3	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	4	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 146139-1	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	2	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 146139-9	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	10	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

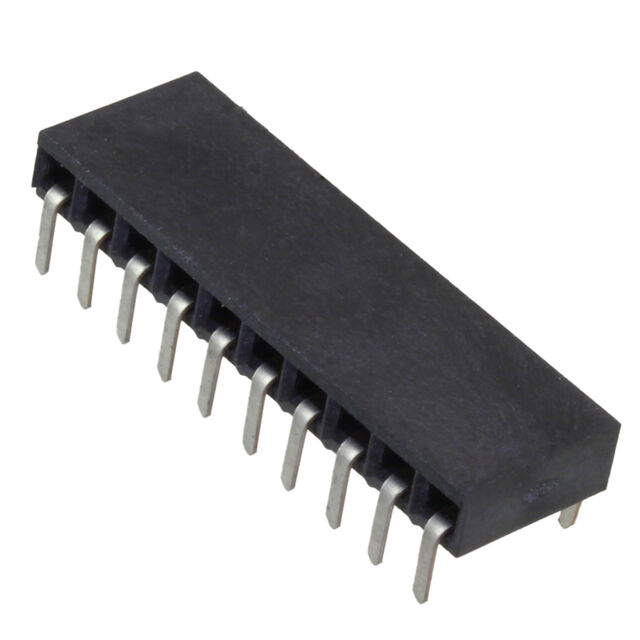

10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
