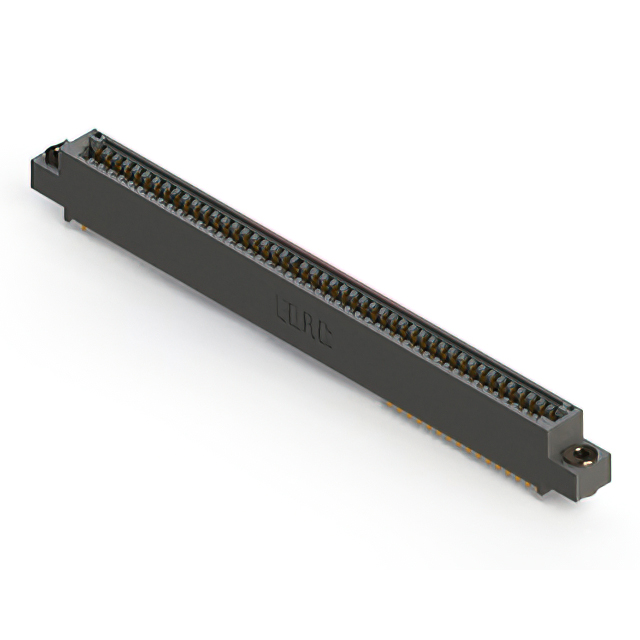

395-094-521-503

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-094-521-503

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-094-521-503

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	94
Number of Positions/Bay/Row [custom]	47
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

395-094 Series

...

Part	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Number of Rows	Number of Positions	Contact Material	Color	Gender	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Contact Type	Card Type	Read Out	Contact Finish	Features
EDAC Inc. 395-094-558-803	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-558-588	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold	Card Guides
EDAC Inc. 395-094-541-202	47	10 Áin	0.25 Ám	Wire Wrap	2	2	94	Copper Alloy	Black	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-559-803	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-521-503	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-542-202	47	10 Áin	0.25 Ám	Wire Wrap	2	2	94	Copper Alloy	Black	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-520-578	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold	Card Guides
EDAC Inc. 395-094-524-204	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold
EDAC Inc. 395-094-560-508	47	10 Áin	0.25 Ám	Solder	2	2	94	Copper Alloy	Black	Female	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold	Card Extender
EDAC Inc. 395-094-555-212	47	10 Áin	0.25 Ám	Solder Eyelet(s)	2	2	94	Copper Alloy	Black	Female	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2.54 mm	0.1 in	Cantilever	Non Specified - Dual Edge	Dual	Gold	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.51
Newark	Each	1	$ 16.19
		100	$ 10.15
		250	$ 8.55
		500	$ 7.71
		1000	$ 6.34

Description

General part information

395-094 Series

94 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
