395-094-558-803
ActiveEDAC Inc.

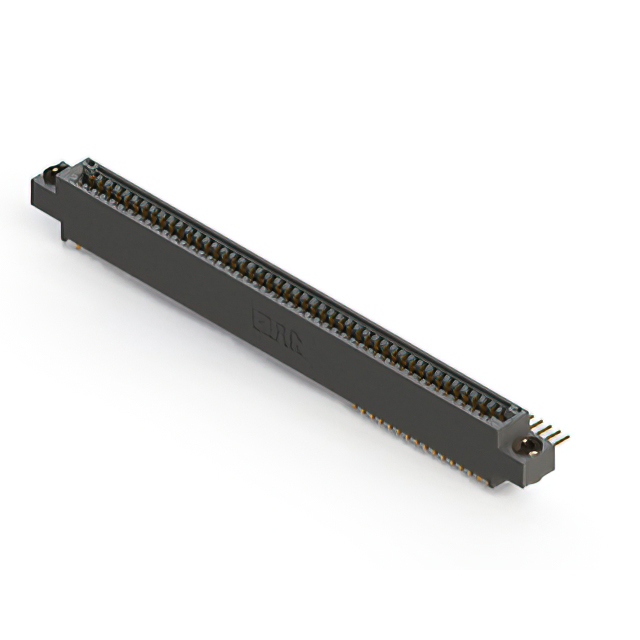

CARD EDGE CONNECTOR, 94 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-094-558-803
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 94 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-094-558-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 94 |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-094 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Number of Rows | Number of Positions | Contact Material | Color | Gender | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Contact Type | Card Type | Read Out | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | Card Guides | ||
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Wire Wrap | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Wire Wrap | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | Card Guides | ||
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | |
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder | 2 | 2 | 94 | Copper Alloy | Black | Female | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | Card Extender | ||
EDAC Inc. | 47 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 2 | 2 | 94 | Copper Alloy | Black | Female | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | Dual | Gold | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.06 | |
Description
General part information
395-094 Series
94 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
