MH18-10R/LX-BOTTLE
Active3M
CONN RING CIRC 18-22AWG #10 25PC
Deep-Dive with AI
Search across all available documentation for this part.
MH18-10R/LX-BOTTLE
Active3M
CONN RING CIRC 18-22AWG #10 25PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MH18-10R/LX-BOTTLE | MH18 Series |
|---|---|---|
| Color | Red | Red |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated with Heat Shrink | Insulated with Heat Shrink, Fully Insulated Heat Shrink |
| Length - Overall | 25.4 mm | 25.4 mm |
| Length - Overall [x] | 1 in | 1 in |
| Length - Ring Center to Termination | - | 3.81 mm |
| Length - Ring Center to Termination | - | 0.15 in |
| Length - Termination | - | 13.97 - 15.49 mm |
| Length - Termination | - | 0.55 - 0.61 in |
| Material - Insulation [custom] | Polyolefin | Polyolefin |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 10 Stud | 6 - 10 Stud |
| Stud/Tab Size | - | 8 Stud |
| Terminal Type | Circular | Snap, Spring, Circular, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.76 mm | 0.76 mm |
| Width - Outer Edges | 7.87 mm | 7.87 mm |
| Width - Outer Edges | - | 6.35 - 8.13 mm |
| Width - Outer Edges [y] | 0.31 in | 0.25 - 0.32 in |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
MH18 Series
CONN SPADE TERM 18-22AWG #8 25PC
| Part | Contact Finish | Features | Contact Material | Terminal Type | Length - Termination | Length - Termination | Length - Overall | Length - Overall [x] | Termination | Stud/Tab Size | Color | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation [custom] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Insulation | Thickness | Thickness | Width - Outer Edges | Width - Outer Edges [y] | Stud/Tab Size | Width - Outer Edges [y] | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tin | Brazed Seam | Copper, ETP | Snap, Spring | 13.97 mm | 0.55 in | 25.4 mm | 1 in | Crimp | 8 Stud | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | 3.81 mm | 0.15 in | Insulated with Heat Shrink | ||||||||
Tin | Brazed Seam | Copper, ETP | Circular | 25.4 mm | 1 in | Crimp | 8 Stud | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | Insulated with Heat Shrink | 0.03 in | 0.76 mm | 7.87 mm | 0.31 in | ||||||||
Tin | Brazed Seam | Copper, ETP | Circular | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | Insulated with Heat Shrink | 0.03 in | 0.76 mm | 7.87 mm | 0.31 in | 10 Stud | ||||||||
Tin | Brazed Seam | Copper, ETP | Snap, Spring | 15.49 mm | 0.61 in | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | 3.81 mm | 0.15 in | Insulated with Heat Shrink | 0.32 in | 10 Stud | 8.13 mm | ||||||
Tin | Brazed Seam | Copper, ETP | Circular | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | Insulated with Heat Shrink | 0.03 in | 0.76 mm | 7.87 mm | 0.31 in | 6 Stud | ||||||||
Tin | Brazed Seam | Copper, ETP | Circular | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | Insulated with Heat Shrink | 0.03 in | 0.76 mm | 7.87 mm | 0.31 in | 10 Stud | ||||||||
Butt Splice, Individual Openings, Inline | Crimp | Red | 22 AWG | 17.5 AWG | Fully Insulated Heat Shrink | 2 | |||||||||||||||||||
Tin | Brazed Seam | Copper, ETP | Snap, Spring | 15.49 mm | 0.61 in | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | 3.81 mm | 0.15 in | Insulated with Heat Shrink | 0.25 " | 6 Stud | 6.35 mm | ||||||
Tin | Brazed Seam | Copper, ETP | Snap, Spring | 15.49 mm | 0.61 in | 25.4 mm | 1 in | Crimp | Red | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Polyolefin | 3.81 mm | 0.15 in | Insulated with Heat Shrink | 0.25 " | 6 Stud | 6.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.05 | |
Description
General part information
MH18 Series

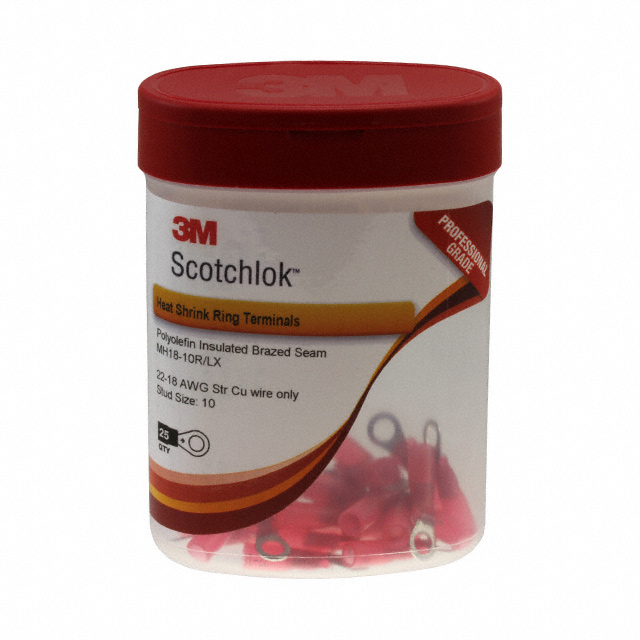

Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp
Documents
Technical documentation and resources
