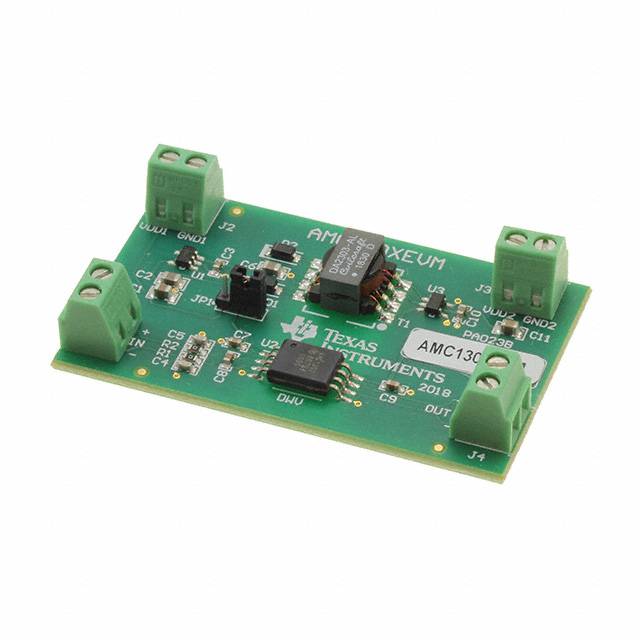

AMC1302QDWVRQ1
ActiveAUTOMOTIVE, ±50-MV INPUT, PRECISION CURRENT SENSING REINFORCED ISOLATED AMPLIFIER
AMC1302QDWVRQ1
ActiveAUTOMOTIVE, ±50-MV INPUT, PRECISION CURRENT SENSING REINFORCED ISOLATED AMPLIFIER
Description
General part information
AMC1302 Series
The AMC1302-Q1 is a precision, isolated amplifier with an output separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMSaccording to DIN EN IEC 60747-17 (VDE 0884-17), and supports a working voltage of up to 1.5 kVRMS.
The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from hazardous voltages and damage.
The input of the AMC1302-Q1 is optimized for direct connection to a low-impedance shunt resistor or other low-impedance voltage source with low signal levels. The excellent DC accuracy and low temperature drift supports accurate current control in PFC stages, DC/DC converters, traction inverters, and OBCs over the full automotive temperature range from –40°C to +125°C.
Technical Specifications
Parameters and characteristics for this part
| Specification | AMC1302QDWVRQ1 |
|---|---|
| Applications | Power Management, Current Sensing |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Package Length | 0.295 in |
| Package Name | 8-SOIC |
| Package Width | 7.5 mm |
| Qualification | AEC-Q100 |
| Type | Isolation |
