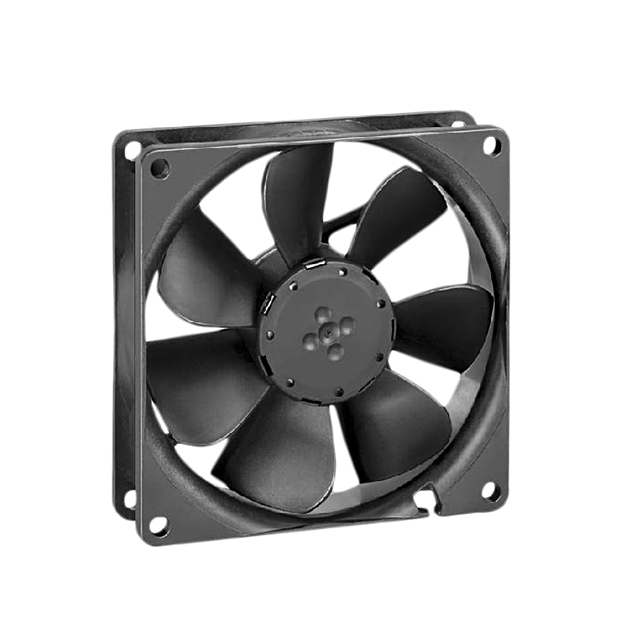

Specification	3412NGLE

Air Flow	35.9 CFM
Approval Agency	VDE, CSA, UL
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Lifetime	80000 Hrs
Material - Blade	Nylon, Polyamide, PA, Fiberglass Reinforced
Material - Frame	Fiberglass Reinforced, Polybutylene Terephthalate (PBT)
Noise	23 dB
Operating Temperature (Max)	176 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	1.1 W
RPM	1950 RPM
Size / Dimension Height	92 mm
Size / Dimension Length	92 mm
Size / Dimension Shape	Square
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	15 V
Voltage Range (Min)	8 V
Weight	0.222 lb
Width	25 mm

3412N Series

Part	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Bearing Type	Air Flow	Width	Approval Agency	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Operating Temperature (Min)	Operating Temperature (Max)	Power (Watts)	Weight	Noise	RPM	Fan Type	Material - Frame	Lifetime	Voltage Range (Min)	Voltage Range (Max)	Material - Blade	Features	Static Pressure	Current Rating	Lifetime
ebm-papst Inc. 3412NGH	2 leads	Wire Leads	2 Wire Leads	12 VAC	Sintec	55.3 CFM	1 in	CSA UL VDE	92 mm	Square	92 mm	-4 °F	158 °F	2.5 W	0.22 lb	36 dB	3000 RPM	Tubeaxial	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	70000 Hrs	8 V	15 V	Fiberglass Reinforced Nylon PA Polyamide
ebm-papst Inc. 3412NGLE	2 leads	Wire Leads	2 Wire Leads	12 VAC	Sintec	35.9 CFM	25 mm	CSA UL VDE	92 mm	Square	92 mm	-4 °F	176 °F	1.1 W	0.222 lb	23 dB	1950 RPM	Tubeaxial	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	80000 Hrs	8 V	15 V	Fiberglass Reinforced Nylon PA Polyamide	Locked Rotor Protection
ebm-papst Inc. 3412N/39H	3	Wire Leads	3 Wire Leads	12 VAC	Ball	55.3 CFM	1 in	CCC CE CSA EAC UL VDE	92 mm	Square	92 mm	-4 °F	158 °F	2.5 W		35 dB	3000 RPM	Tubeaxial	Fiberglass Reinforced Polybutylene Terephthalate (PBT)		8 V	15 V	Fiberglass Reinforced Nylon PA Polyamide		0.189 in H2O	0.208 A	Varies Based on Temperature
ebm-papst Inc. 3412NME	2 leads	Wire Leads	2 Wire Leads	12 VAC	Ball	42.4 CFM	1 in	CSA UL VDE	92 mm	Square	92 mm	-4 °F	167 °F	1.1 W	0.22 lb	28 dB	2300 RPM	Tubeaxial	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	75000 Hrs	8 V	15 V	Fiberglass Reinforced Nylon PA Polyamide
ebm-papst Inc. 3412N/37GV	4 leads	Wire Leads	4 Wire Leads	12 VAC	Sleeve	49.4 CFM	1 in	CSA UL VDE	92 mm	Square	92 mm	-4 °F	149 °F	2.5 W		32 dB	2700 RPM	Tubeaxial	Fiberglass Reinforced Polybutylene Terephthalate (PBT)		8 V	12.6 VDC	Fiberglass Reinforced Nylon PA Polyamide			0.205 A	Varies Based on Temperature
