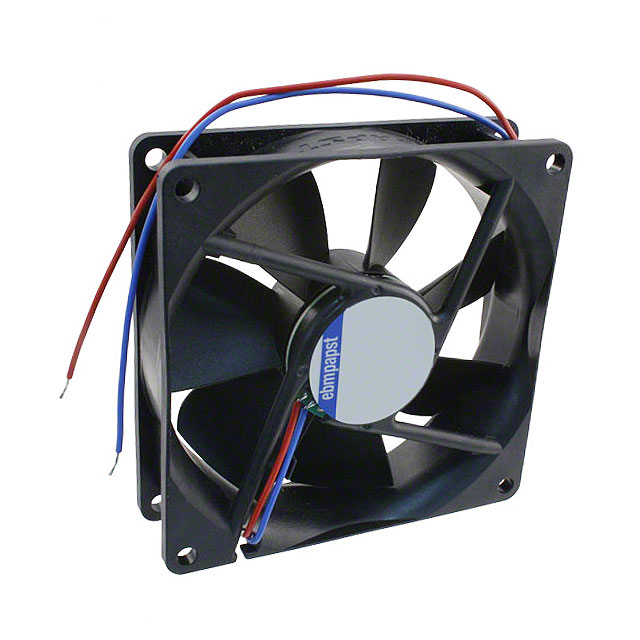

3412NME - 3400N-2WireLeads

3412NME

Active
ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 42 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC CatalogDatasheet+2
3412NME - 3400N-2WireLeads

3412NME

Active
ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 42 CFM

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC CatalogDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification3412NME
Air Flow1.19 mł/min
Air Flow42.4 CFM
Approval AgencyUL, VDE, CSA
Bearing TypeBall
Fan TypeTubeaxial
Lifetime @ Temp.75000 Hrs
Material - BladePolyamide (PA), Nylon, Fiberglass Reinforced
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise28 dB
Operating Temperature [Max]75 ░C
Operating Temperature [Max]75 °C
Operating Temperature [Min]-20 C
Operating Temperature [Min]-20 °C
Power (Watts)1.1 W
RPM2300 RPM
Termination2 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]15 V
Voltage Range [Min]8 VDC
Weight99.79 g
Weight0.22 lb
Width [y]25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 29.18
10$ 26.65
25$ 25.64
50$ 23.95
100$ 22.10
250$ 21.76
NewarkEach 1$ 24.08

Description

General part information

3412NME

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 42.4 CFM (1.19mł/min) 2 Wire Leads
