09120080728

Active

HARTING

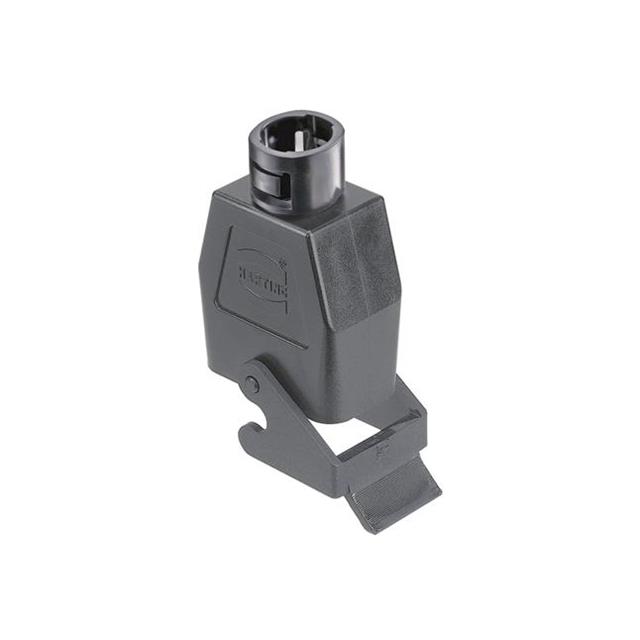

HAN Q 8/0 COUPLER ADAPTALOCK ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09120080728

Active

HARTING

HAN Q 8/0 COUPLER ADAPTALOCK ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.12
Newark	Each	10	$ 20.69
		25	$ 18.65
		50	$ 18.14
		100	$ 16.00
		250	$ 14.88
		500	$ 14.58

Description

General part information

09120080 Series

Hood - Coupling Connector Bottom Entry IP65/IP67 - Dust Tight, Water Resistant, Waterproof

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120080728	09120080 Series

	-	-
Connector Type	Hood - Coupling	Base - Panel Mount 90°, Hood, Hood - Coupling, Base - Panel Mount
Features	Cable to Cable	Cable to Cable
Housing Color	Black	Black
Housing Finish	-	Chromate, Nickel
Housing Material	Thermoplastic	Thermoplastic, Polycarbonate (PC), Zinc, Die Cast
Ingress Protection	IP67, IP65	IP67, IP65, IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood	Locking Clip (1) on Base Bottom, Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	45.9 mm	45.9 - 47.9 mm
Size / Dimension [x]	1.807 "	1.807 - 1.886 "
Size / Dimension [y]	1.051 in	1.051 - 1.181 in
Size / Dimension [y]	26.7 mm	26.7 - 30 mm
Size / Dimension [z]	1.988 in	0.728 - 2.126 in
Size / Dimension [z]	50.5 mm	18.5 - 54 mm
Style	Bottom Entry	Side Entry, Top Entry, Bottom Entry
Thread Size	-	PG21, PG16

09120080 Series

HAN Q 8/0 BASE ANGLED ROHS COMPLIANT: NA

Part	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Connector Type	Thread Size	Features	Housing Finish
HARTING 09120080902	Locking Clip (1) on Base Bottom	30 mm	33 mm	45.9 mm	1.807 "	1.181 in	1.299 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Base - Panel Mount 90°
HARTING 09120080429	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Top Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Hood	PG21
HARTING 09120080329
HARTING 09120080727	Locking Clip (1) on Hood	26.7 mm	50.5 mm	45.9 mm	1.807 "	1.051 in	1.988 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood - Coupling	PG16	Cable to Cable
HARTING 09120080728	Locking Clip (1) on Hood	26.7 mm	50.5 mm	45.9 mm	1.807 "	1.051 in	1.988 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood - Coupling		Cable to Cable
HARTING 09120080301	Locking Clip (1) on Base Bottom	29 mm	18.5 mm	45.9 mm	1.807 "	1.142 in	0.728 "	Black	Bottom Entry	125 °C	-40 °C	IP65 - Dust Tight, Water Resistant	Zinc, Die Cast	Base - Panel Mount			Chromate
HARTING 09120080428	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Top Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood
HARTING 09120080901	Locking Clip (1) on Base Bottom	30 mm	33 mm	45.9 mm	1.807 "	1.181 in	1.299 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Base - Panel Mount 90°	PG16
HARTING 09120080327	Locking Clip (1) on Base Bottom	28.7 mm	19.5 mm	45.9 mm	1.807 "	1.13 in	0.768 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Base - Panel Mount
HARTING 09120080527	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Hood	PG16
