09120080301

Active

HARTING

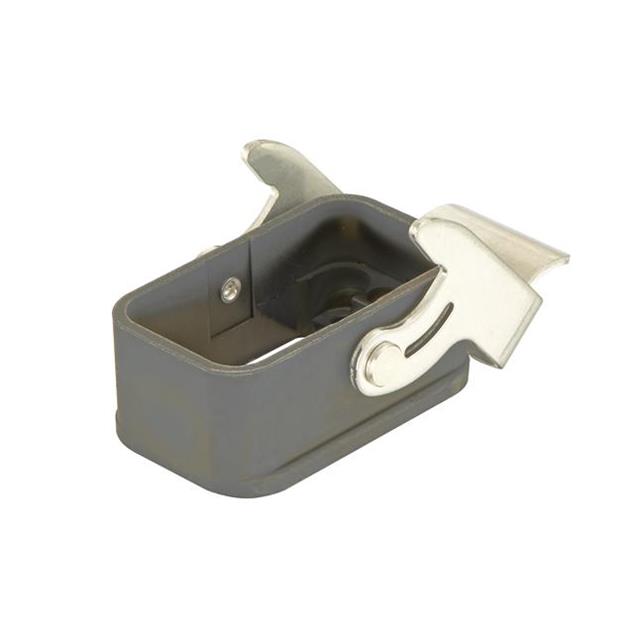

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ZINC BODY, 1 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

09120080301

Active

HARTING

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ZINC BODY, 1 LEVER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.98
		10	$ 21.28
		25	$ 19.07
		50	$ 17.64
		100	$ 16.38
		250	$ 14.96
		500	$ 14.03
Newark	Each	10	$ 16.15
		25	$ 14.53
		50	$ 14.12
		100	$ 13.72

Description

General part information

09120080 Series

Base - Panel Mount Connector Bottom Entry IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet

Specification	09120080301	09120080 Series

	-	-
Connector Type	Base - Panel Mount	Base - Panel Mount 90°, Hood, Hood - Coupling, Base - Panel Mount
Features	-	Cable to Cable
Housing Color	Black	Black
Housing Finish	Chromate	Chromate, Nickel
Housing Material	Zinc, Die Cast	Thermoplastic, Polycarbonate (PC), Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP67, IP65, IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom	Locking Clip (1) on Base Bottom, Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	45.9 mm	45.9 - 47.9 mm
Size / Dimension [x]	1.807 "	1.807 - 1.886 "
Size / Dimension [y]	1.142 in	1.051 - 1.181 in
Size / Dimension [y]	29 mm	26.7 - 30 mm
Size / Dimension [z]	0.728 "	0.728 - 2.126 in
Size / Dimension [z]	18.5 mm	18.5 - 54 mm
Style	Bottom Entry	Side Entry, Top Entry, Bottom Entry
Thread Size	-	PG21, PG16

Part	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Connector Type	Thread Size	Features	Housing Finish
HARTING 09120080902	Locking Clip (1) on Base Bottom	30 mm	33 mm	45.9 mm	1.807 "	1.181 in	1.299 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Base - Panel Mount 90°
HARTING 09120080429	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Top Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Hood	PG21
HARTING 09120080329
HARTING 09120080727	Locking Clip (1) on Hood	26.7 mm	50.5 mm	45.9 mm	1.807 "	1.051 in	1.988 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood - Coupling	PG16	Cable to Cable
HARTING 09120080728	Locking Clip (1) on Hood	26.7 mm	50.5 mm	45.9 mm	1.807 "	1.051 in	1.988 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood - Coupling		Cable to Cable
HARTING 09120080301	Locking Clip (1) on Base Bottom	29 mm	18.5 mm	45.9 mm	1.807 "	1.142 in	0.728 "	Black	Bottom Entry	125 °C	-40 °C	IP65 - Dust Tight, Water Resistant	Zinc, Die Cast	Base - Panel Mount			Chromate
HARTING 09120080428	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Top Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Hood
HARTING 09120080901	Locking Clip (1) on Base Bottom	30 mm	33 mm	45.9 mm	1.807 "	1.181 in	1.299 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Thermoplastic	Base - Panel Mount 90°	PG16
HARTING 09120080327	Locking Clip (1) on Base Bottom	28.7 mm	19.5 mm	45.9 mm	1.807 "	1.13 in	0.768 in	Black	Bottom Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Base - Panel Mount
HARTING 09120080527	Locking Clip (1) on Base Bottom	28.7 mm	54 mm	47.9 mm	1.886 "	1.13 in	2.126 in	Black	Side Entry	125 °C	-40 °C	IP65, IP67	Polycarbonate (PC)	Hood	PG16
