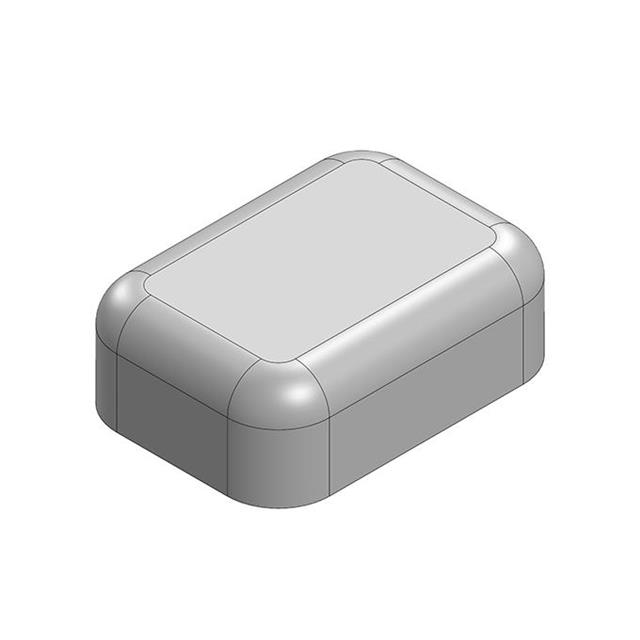

MS087-10S-NS

Active

Masach Tech Ltd.

RF SHIELD 0.248" X 0.343" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.248" X 0.343" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.272X0.366" SNAP FIT

Part	Type	Width - Overall	Width - Overall	Ventilation	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Width - Overall [y]	Width - Overall [y]	Height - Overall
Masach Tech Ltd. MS087-10C-NS	Cover	6.9 mm	0.272 in	Non-Vented	0.106 "	2.7 mm	9.3 mm	0.366 in	Snap Fit
Masach Tech Ltd. MS087-10S-NS	Shield, 1-Piece			Non-Vented	0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10F	Frame				0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10F-NS	Frame				0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10C	Cover	6.9 mm	0.272 in	Non-Vented	0.106 "	2.7 mm	9.3 mm	0.366 in	Snap Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 0.248" (6.30mm) X 0.343" (8.70mm) Non-Vented Solder
