MS087-10C

Active

Masach Tech Ltd.

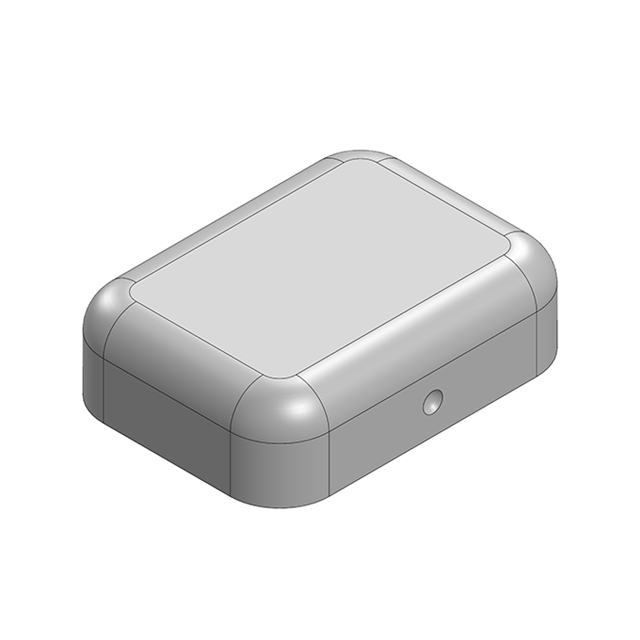

RF SHIELD 0.272X0.366" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.272X0.366" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.272X0.366" SNAP FIT

Part	Type	Width - Overall	Width - Overall	Ventilation	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Width - Overall [y]	Width - Overall [y]	Height - Overall
Masach Tech Ltd. MS087-10C-NS	Cover	6.9 mm	0.272 in	Non-Vented	0.106 "	2.7 mm	9.3 mm	0.366 in	Snap Fit
Masach Tech Ltd. MS087-10S-NS	Shield, 1-Piece			Non-Vented	0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10F	Frame				0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10F-NS	Frame				0.118 in		8.7 mm	0.343 in	Solder	0.248 in	6.3 mm	3 mm
Masach Tech Ltd. MS087-10C	Cover	6.9 mm	0.272 in	Non-Vented	0.106 "	2.7 mm	9.3 mm	0.366 in	Snap Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.272" (6.90mm) X 0.366" (9.30mm) Non-Vented Snap Fit
