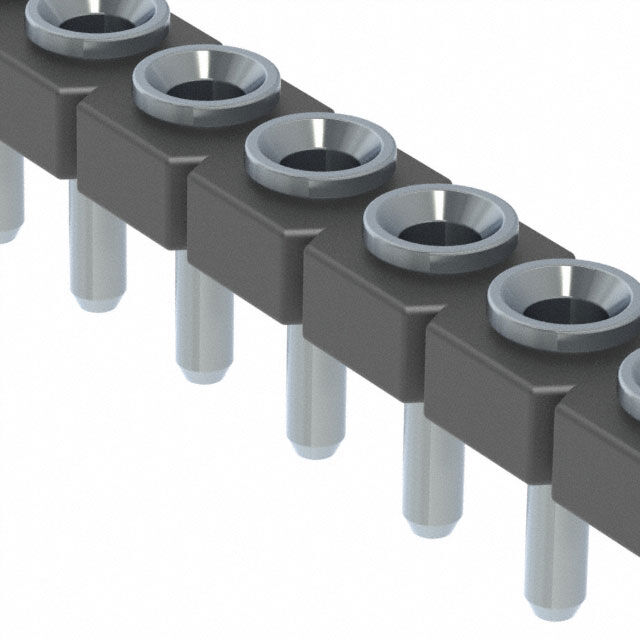

SL-112-TT-19

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

SL-112-TT-19

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SL-112-TT-19

Connector Type	Receptacle
Contact Length - Post [x]	2.08 mm
Contact Length - Post [x]	0.082 "
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SL-112 Series

Part	Insulation Height [z]	Insulation Height [z]	Insulation Color	Mounting Type	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Contact Finish - Mating	Insulation Material	Contact Material	Contact Type	Connector Type	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. SL-112-T-12	0.095 in	2.41 mm	Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm	2.41 mm	0.095 in
Samtec Inc. SL-112-T-19			Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm	2.08 mm	0.082 "	0.05 in	1.27 mm
Samtec Inc. SL-112-G-31			Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm			0.05 in	1.27 mm	Gold	10 çin	0.25 çm
Samtec Inc. SL-112-TT-10			Black	Through Hole	Push-Pull	1	-55 °C	105 ░C	Circular	12		Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder			0.1 in	2.54 mm			0.122 in	3.1 mm	Tin			0.108 in	2.75 mm
Samtec Inc. SL-112-G-12	0.095 in	2.41 mm	Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm	2.41 mm	0.095 in			Gold	10 çin	0.25 çm
Samtec Inc. SL-112-T-32			Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm			0.05 in	1.27 mm
Samtec Inc. SL-112-TT-11			Black	Through Hole	Push-Pull	1	-55 °C	105 ░C	Circular	12		Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder			0.1 in	2.54 mm			0.132 in	3.35 mm	Tin			0.108 in	2.75 mm
Samtec Inc. SL-112-T-30			Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm			0.05 in	1.27 mm
Samtec Inc. SL-112-TT-19			Black	Through Hole	Push-Pull	1	-55 °C	105 ░C	Circular	12		Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder			0.1 in	2.54 mm	2.08 mm	0.082 "	0.05 in	1.27 mm
Samtec Inc. SL-112-T-11			Black	Through Hole	Push-Pull	1	-55 °C	125 °C	Circular	12	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	Female Socket	Receptacle	All	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm			0.132 in	3.35 mm				0.108 in	2.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.43

Description

General part information

SL-112 Series

12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
