F28P659SH6PZPRQ1

Active

Texas Instruments

AUTOMOTIVE C2000 32-BIT MCU, 400 MIPS, 1XC28X + 1XCLA , FPU64, 768KB FLASH, 16-B ADC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMigration Between TMS320F2837x and TMS320F28P65x Software Examples to Showcase Unique Capabilities of TI’s C2000™ CLA (Rev. A)+71

F28P659SH6PZPRQ1

Active

Texas Instruments

AUTOMOTIVE C2000 32-BIT MCU, 400 MIPS, 1XC28X + 1XCLA , FPU64, 768KB FLASH, 16-B ADC

Deep-Dive with AI

DocumentsMigration Between TMS320F2837x and TMS320F28P65x Software Examples to Showcase Unique Capabilities of TI’s C2000™ CLA (Rev. A)+71

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F28P659SH6PZPRQ1	F28P659 Series

Connectivity [custom]	SCI, USB, CANbus, SPI, UART/USART, I2C	SCI, USB, CANbus, SPI, UART/USART, I2C
Core Processor	C28x	C28x
Core Size	32-Bit	32-Bit
Core Size	-	32-Bit Dual-Core
Data Converters	A/D 24x12/16b SAR, D/A 2x12b	A/D 24x12/16b SAR, D/A 2x12b, A/D 40x12/16b SAR
Data Converters	-	12
Data Converters	-	12 - 16
Data Converters	-	2 - 36
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Number of I/O	49	49 - 163
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal

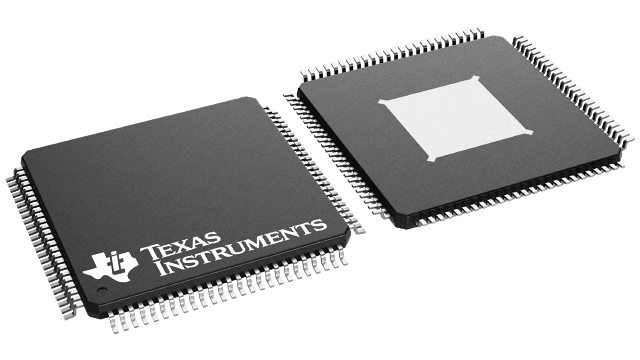

Package / Case	100-TQFP Exposed Pad	100-TQFP Exposed Pad, 256-LFBGA, 176-LQFP Exposed Pad, 176-PowerLQFP
Peripherals	AES, PWM, DMA, WDT, Brown-out Detect/Reset, POR	AES, PWM, DMA, WDT, Brown-out Detect/Reset, POR
Program Memory Size	768 KB	1.28 - 768 KB
Program Memory Type	FLASH	FLASH
Qualification	AEC-Q100	AEC-Q100
RAM Size	244 K	244 - 248 K
Speed	200 MHz	200 MHz
Supplier Device Package	100-HTQFP (14x14)	100-HTQFP (14x14), 256-NFBGA (13x13), 176-HLQFP (24x24)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 14.27
		10	$ 13.12
		25	$ 12.57
		100	$ 11.08
		250	$ 10.53
		500	$ 9.85
	Digi-Reel®	1	$ 14.27
		10	$ 13.12
		25	$ 12.57
		100	$ 11.08
		250	$ 10.53
		500	$ 9.85
	Tape & Reel (TR)	1000	$ 9.04
Texas Instruments	LARGE T&R	1	$ 10.79
		100	$ 9.43
		250	$ 7.27
		1000	$ 6.50

F28P659 Series

Automotive C2000 32-bit MCU, 400 MIPS, 1xC28x + 1xCLA , FPU64, 768kB flash, 16-b ADC

Part	Oscillator Type	Speed	Core Size	Package / Case	Program Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Supplier Device Package	Grade	Qualification	Program Memory Type	Data Converters	Number of I/O	Peripherals	Connectivity [custom]	RAM Size	Mounting Type	Core Size [custom]	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]
Texas Instruments F28P659SH6PZPRQ1	Internal	200 MHz	32-Bit	100-TQFP Exposed Pad	768 KB	-40 °C	125 °C	C28x	100-HTQFP (14x14)	Automotive	AEC-Q100	FLASH	A/D 24x12/16b SAR, D/A 2x12b	49	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	244 K	Surface Mount
Texas Instruments F28P659DK8ZEJQ1	Internal	200 MHz		256-LFBGA	1.28 MB	-40 °C	125 °C	C28x	256-NFBGA (13x13)	Automotive	AEC-Q100	FLASH	A/D 40x12/16b SAR, D/A 2x12b	163	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core
Texas Instruments F28P659DH8PZPRQ1	Internal	200 MHz		100-TQFP Exposed Pad	768 KB	-40 °C	125 °C	C28x	100-HTQFP (14x14)	Automotive	AEC-Q100	FLASH	A/D 24x12/16b SAR, D/A 2x12b	49	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core
Texas Instruments F28P659SH6PTPQ1	Internal	200 MHz		176-LQFP Exposed Pad, 176-PowerLQFP	768 KB	-40 °C	125 °C	C28x	176-HLQFP (24x24)	Automotive	AEC-Q100	FLASH		106	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	244 K	Surface Mount	32-Bit Dual-Core	12	12, 16	2, 36
Texas Instruments F28P659DK8PZPRQ1	Internal	200 MHz		100-TQFP Exposed Pad	1.28 MB	-40 °C	125 °C	C28x	100-HTQFP (14x14)	Automotive	AEC-Q100	FLASH	A/D 24x12/16b SAR, D/A 2x12b	49	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core
Texas Instruments F28P659DK8PTPQ1	Internal	200 MHz		176-LQFP Exposed Pad	1.28 MB	-40 °C	125 °C	C28x	176-HLQFP (24x24)	Automotive	AEC-Q100	FLASH		106	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core	12	12, 16	2, 36
Texas Instruments F28P659DK8ZEJRQ1	Internal	200 MHz		256-LFBGA	1.28 MB	-40 °C	125 °C	C28x	256-NFBGA (13x13)	Automotive	AEC-Q100	FLASH	A/D 40x12/16b SAR, D/A 2x12b	163	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core
Texas Instruments F28P659DK8PZPQ1	Internal	200 MHz		100-TQFP Exposed Pad	1.28 MB	-40 °C	125 °C	C28x	100-HTQFP (14x14)	Automotive	AEC-Q100	FLASH	A/D 24x12/16b SAR, D/A 2x12b	49	AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT	CANbus, I2C, SCI, SPI, UART/USART, USB	248 K	Surface Mount	32-Bit Dual-Core

Description

General part information

F28P659 Series

The TMS320F28P65x (F28P65x) is a member of the C2000™ real-time microcontroller family of scalable, ultra-low latency devices designed for efficiency in power electronics, including but not limited to: high power density, high switching frequencies, and supporting the use of IGBT, GaN, and SiC technologies.

These include such applications as:

Thereal-time control subsystemis based on TI’s 32-bit C28x DSP core, which provides 200MIPS of signal-processing performance in each core for floating- or fixed-point code running from either on-chip flash or SRAM. This is equivalent to the 400MHz processing power on a Cortex®-M7 based device (C28x DSP core gives two times more performance than the Cortex®-M7 core).The C28x CPU is further boosted by theTrigonometric Math Unit (TMU)andVCRC (Cyclical Redundancy Check) extended instruction sets, speeding up common algorithms key to real-time control systems. Extended instruction sets enable IEEE double-precision 64-bit floating-point math. Finally, theControl Law Accelerator (CLA)enables an additional 200MIPS per core of independent processing ability. This is equivalent to the 280MHz processing power on a Cortex®-M7 based device (CLA CPU gives 40% more performance than the Cortex®-M7 core).
