842-028-540-207

Active

EDAC Inc.

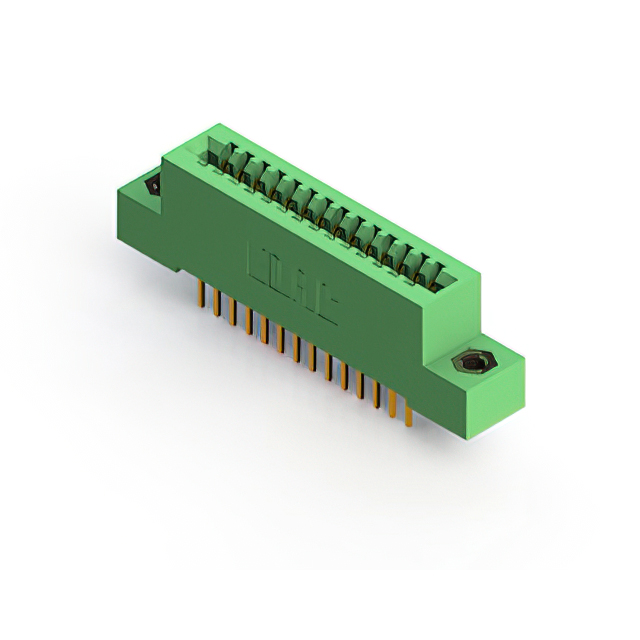

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-028-540-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-028-540-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

842-028 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Number of Rows	Read Out	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material - Insulation	Color	Pitch [x]	Pitch [x]	Termination	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Finish	Gender	Contact Type	Features
EDAC Inc. 842-028-541-112	10 Áin	0.25 Ám	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	1	1	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Wire Wrap	28	28	Gold	Female	Cantilever
EDAC Inc. 842-028-541-108	10 Áin	0.25 Ám	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		1	1	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Wire Wrap	28	28	Gold	Female	Cantilever
EDAC Inc. 842-028-559-107	10 Áin	0.25 Ám	Through Hole Right Angle		Flush Mount M3 Threaded Insert Top Opening		1	1	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Solder	28	28	Gold	Female	Cantilever
EDAC Inc. 842-028-542-203	10 Áin	0.25 Ám	Through Hole	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Wire Wrap	28	14	Gold	Female	Cantilever
EDAC Inc. 842-028-541-104	10 Áin	0.25 Ám	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1	1	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Wire Wrap	28	28	Gold	Female	Cantilever
EDAC Inc. 842-028-521-212	10 Áin	0.25 Ám	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Solder	28	14	Gold	Female	Cantilever
EDAC Inc. 842-028-500-203	10 Áin	0.25 Ám	Through Hole	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Solder Eyelet(s)	28	14	Gold	Female	Cantilever
EDAC Inc. 842-028-540-207	10 Áin	0.25 Ám	Through Hole		Flush Mount M3 Threaded Insert Top Opening		2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Wire Wrap	28	14	Gold	Female	Cantilever
EDAC Inc. 842-028-558-207	10 Áin	0.25 Ám	Through Hole Right Angle		Flush Mount M3 Threaded Insert Top Opening		2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Solder	28	14	Gold	Female	Cantilever
EDAC Inc. 842-028-555-203	10 Áin	0.25 Ám	Board Edge Straddle Mount	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2	2	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Copper Alloy	Diallyl Phthalate (DAP)	Green	2.54 mm	0.1 in	Solder	28	14	Gold	Female	Cantilever	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 66.39
Newark	Each	1	$ 76.64
		100	$ 57.55
		250	$ 49.91
		500	$ 43.77
		1000	$ 32.13

Description

General part information

842-028 Series

28 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
