842-028-559-107
ActiveEDAC Inc.

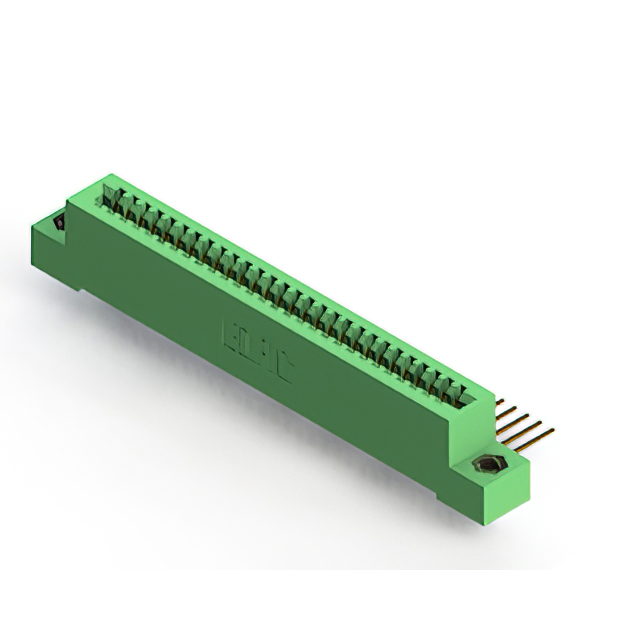

CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-028-559-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-028-559-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-028 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Number of Rows | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Material - Insulation | Color | Pitch [x] | Pitch [x] | Termination | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish | Gender | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | 1 | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Wire Wrap | 28 | 28 | Gold | Female | Cantilever | |
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Wire Wrap | 28 | 28 | Gold | Female | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole Right Angle | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Solder | 28 | 28 | Gold | Female | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Wire Wrap | 28 | 14 | Gold | Female | Cantilever | |
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | 1 | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Wire Wrap | 28 | 28 | Gold | Female | Cantilever | |
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Solder | 28 | 14 | Gold | Female | Cantilever | |
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Solder Eyelet(s) | 28 | 14 | Gold | Female | Cantilever | |
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Wire Wrap | 28 | 14 | Gold | Female | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Through Hole Right Angle | Flush Mount M3 Threaded Insert Top Opening | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Solder | 28 | 14 | Gold | Female | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | 2 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Diallyl Phthalate (DAP) | Green | 2.54 mm | 0.1 in | Solder | 28 | 14 | Gold | Female | Cantilever | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
