SM3ZS067U410AMR1000
ActiveJAE Electronics

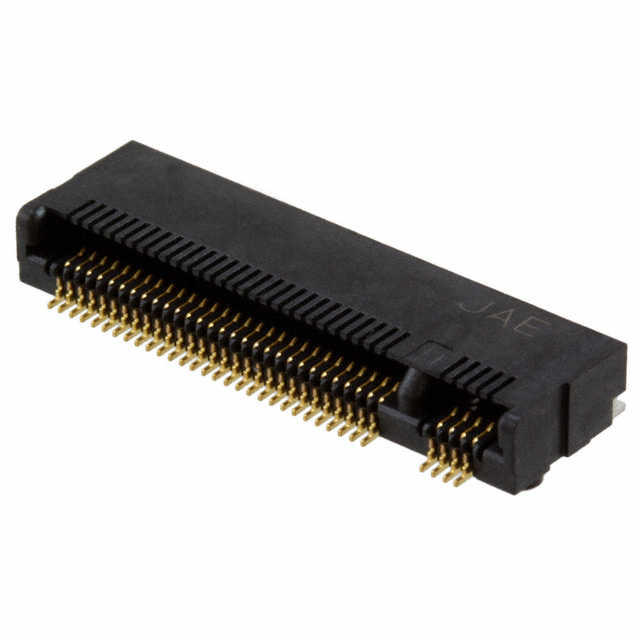

CARD EDGE CONNECTOR, 67 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM3ZS067U410AMR1000
ActiveJAE Electronics
CARD EDGE CONNECTOR, 67 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3ZS067U410AMR1000 |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | M.2 (NGFF) Mini Card |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.13 µm |
| Contact Finish Thickness | 5.11 µin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
