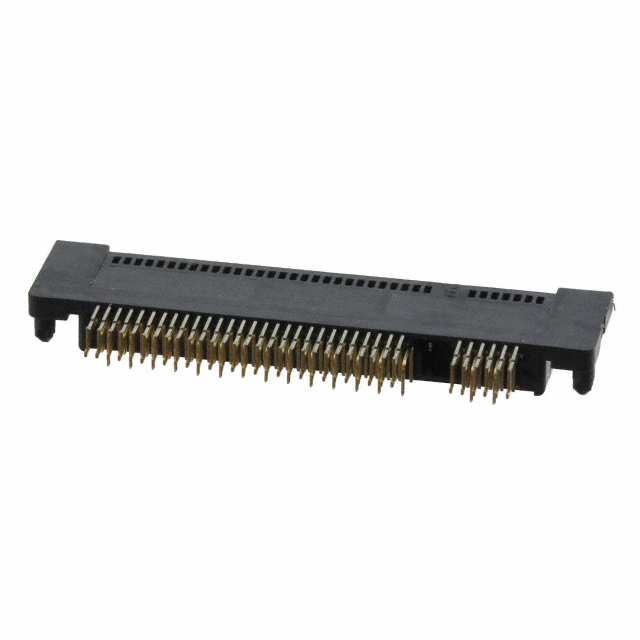

SM3ZS067B120AB2R1500
ActiveJAE Electronics
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM3ZS067B120AB2R1500
ActiveJAE Electronics
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3ZS067B120AB2R1500 |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | M.2 (NGFF) Mini Card |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.13 µm |
| Contact Finish Thickness | 5.11 µin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.37 | |
| 10 | $ 2.06 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.53 | |||
| Tape & Reel (TR) | 1500 | $ 1.09 | ||
Description
General part information
SM3ZS067 Series
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm)
