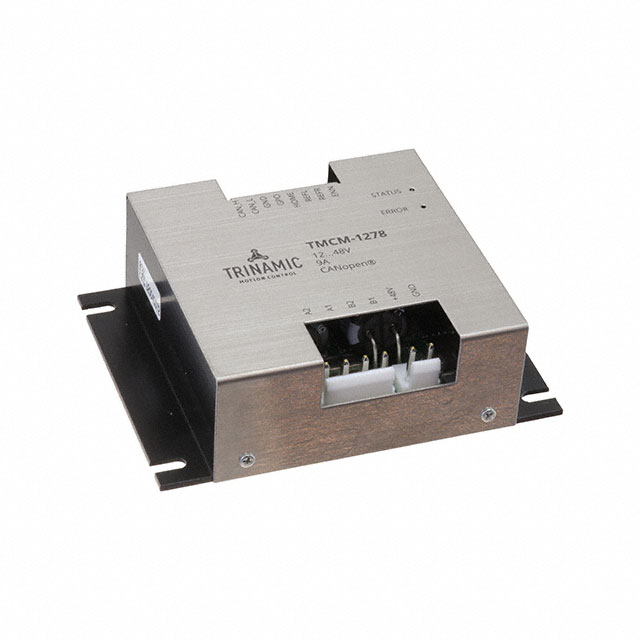

TMCM-1278-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 9A, 12...48V

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 9A, 12...48V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1278-CANOPEN	TMCM-1278 Series

Accessory Type	-	Cable Assembly
Control / Drive Type	Bipolar, Stepper	Bipolar, Stepper
Current - Output	9 A	9 A
For Use With/Related Products	-	TMCM-1278 Series
Interface	CAN, USB	CAN, USB
Motor Type	Stepper	Stepper
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Type	Module	Module
Usage	-	Motor
Voltage - Supply [Max]	48 V	48 V
Voltage - Supply [Min]	12 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 314.56

STEPPER DRIVER 9A, 12...48V

Part	Current - Output	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Control / Drive Type	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Motor Type	Type	Usage	For Use With/Related Products	Accessory Type
Analog Devices Inc./Maxim Integrated TMCM-1278-TMCL	9 A	Chassis Mount	12 V	48 V	Bipolar, Stepper	-30 ░C	40 °C	CAN, USB	Stepper	Module
Analog Devices Inc./Maxim Integrated TMCM-1278-CABLE											Motor	TMCM-1278 Series	Cable Assembly
Analog Devices Inc./Maxim Integrated TMCM-1278-CANOPEN	9 A	Chassis Mount	12 V	48 V	Bipolar, Stepper	-30 ░C	40 °C	CAN, USB	Stepper	Module

General part information

Stepper, Bipolar 12 ~ 48VDC Supply 9A Load

Technical documentation and resources

No documents available
