TMCM-1278-CABLE

Active

Analog Devices Inc./Maxim Integrated

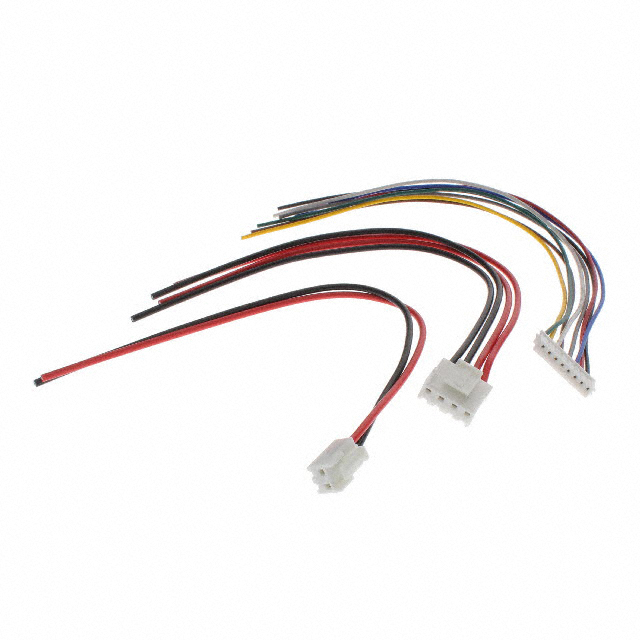

CABLE LOOM FOR TMCM-1278

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

CABLE LOOM FOR TMCM-1278

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1278-CABLE	TMCM-1278 Series

Accessory Type	Cable Assembly	Cable Assembly
Control / Drive Type	-	Bipolar, Stepper
Current - Output	-	9 A
For Use With/Related Products	TMCM-1278 Series	TMCM-1278 Series
Interface	-	CAN, USB
Motor Type	-	Stepper
Mounting Type	-	Chassis Mount
Operating Temperature	-	-30 ░C
Operating Temperature	-	40 °C
Type	-	Module
Usage	Motor	Motor
Voltage - Supply	-	12 V
Voltage - Supply	-	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.90

STEPPER DRIVER 9A, 12...48V

Part	Current - Output	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Control / Drive Type	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Motor Type	Type	Usage	For Use With/Related Products	Accessory Type
Analog Devices Inc./Maxim Integrated TMCM-1278-TMCL	9 A	Chassis Mount	12 V	48 V	Bipolar, Stepper	-30 ░C	40 °C	CAN, USB	Stepper	Module
Analog Devices Inc./Maxim Integrated TMCM-1278-CABLE											Motor	TMCM-1278 Series	Cable Assembly
Analog Devices Inc./Maxim Integrated TMCM-1278-CANOPEN	9 A	Chassis Mount	12 V	48 V	Bipolar, Stepper	-30 ░C	40 °C	CAN, USB	Stepper	Module

General part information

Cable Assembly

Technical documentation and resources

No documents available
