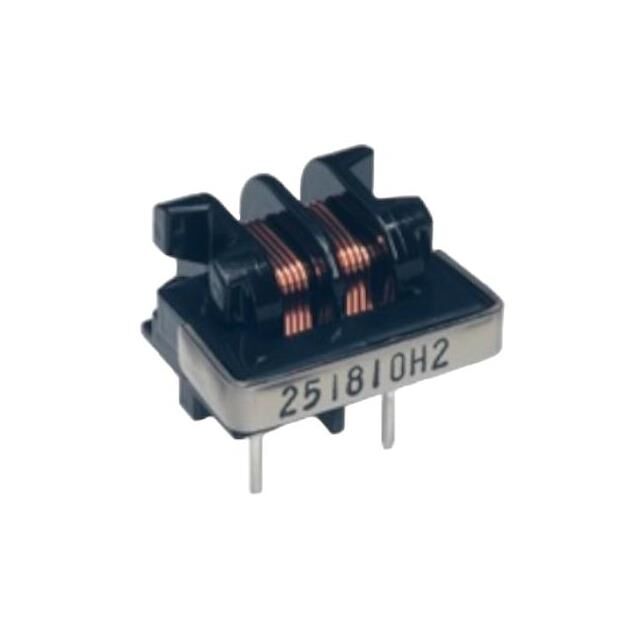

SU9HD-40006 - SU9HD-40006

SU9HD-40006

Active
KEMET

COMMON MODE FILTER, 5.95UH, 4A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSU9HD-40006 SpecKEM_LF0019_SU9VD_9HD.pdf+3
SU9HD-40006 - SU9HD-40006

SU9HD-40006

Active
KEMET

COMMON MODE FILTER, 5.95UH, 4A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSU9HD-40006 SpecKEM_LF0019_SU9VD_9HD.pdf+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSU9HD-40006
Current Rating (Max) [Max]4 A
DC Resistance (DCR) (Max)27.5 mOhm
Filter TypePower Line
Height (Max)12.5 mm
Height (Max) [Max]0.492 in
Inductance @ Frequency1 kHz, 5.95 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]17 mm
Size / Dimension [x]0.669 "
Size / Dimension [y]0.61 in
Size / Dimension [y]15.5 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.03
10$ 0.84
25$ 0.78
40$ 0.75
100$ 0.69
300$ 0.63
500$ 0.61
1000$ 0.57
2400$ 0.53
NewarkEach 1$ 1.07
10$ 0.76
25$ 0.70
50$ 0.65
100$ 0.59
500$ 0.57
1000$ 0.54

Description

General part information

SU9HD Series

5.95 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A DCR 27.5mOhm
